  • TUNGALOY AWLNL16-4-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 1.000 Shank

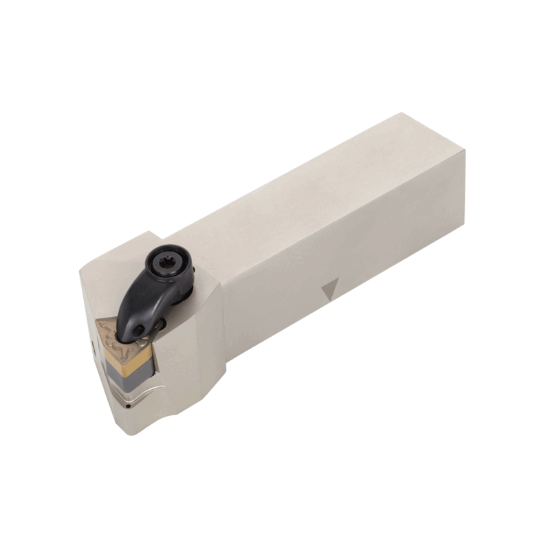

Picture of TUNGALOY AWLNL16-4-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 1.000 Shank

TUNGALOY AWLNL16-4-CHP-MC Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 1.000 Shank

ANSI: AWLNL16-4-CHP-MC

ISO: AWLNL16-4-CHP-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3346707
Delivery date: 3-5 days
$308.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Neg,L style, 95deg Approach

Details

Double-clamp toolholders with 95deg approach angle for negative trigon inserts with high pressure coolant channels

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Additional Key Information 2 Trigon
Application Ext.Turning
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 95°
Machine Side STICK TOOL1.0000
Cutting & Machining Properties
Insert Style WN
Insert Shape/Cutter Pocket Shape Trigon
Inter/Extern External
Hand R/L Left
