  • TUNGALOY ASSNR2525M15-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.984 Shank

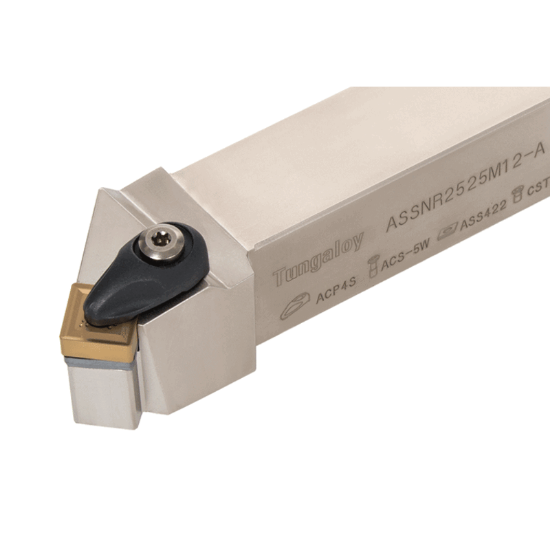

Picture of TUNGALOY ASSNR2525M15-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.984 Shank

TUNGALOY ASSNR2525M15-A Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.984 Shank

ANSI: ASSNR2525M15-A

ISO: ASSNR2525M15-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6888899
Delivery date: 3-5 days
$128.05
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Neg,S style, 45deg Approach

Details

Double-clamp toolholder with 45deg approach angle (S-style), for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Sold by Pieces 1
Insert/Tool Tool
Shipping State Illinois
Additional Key Information 2 Square
Application Ext.Turning
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Clearance Angle 40.0°
Insert Size Ic 12 "43"
Machine Side STICK TOOL0.9843
Overall Len 5.9055 150.00MM
Lead Angle 45°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9843 25.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SN
Inter/Extern External
