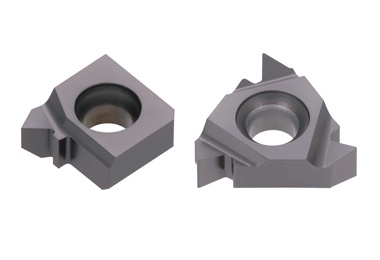

Picture of Tungaloy 22IRN60 TH10 Insert Iso Thread Partial Profile 5.00TPI - 7.00TPI 5.08mm - 3.63mm 60.0°

Tungaloy 22IRN60 TH10 Insert Iso Thread Partial Profile 5.00TPI - 7.00TPI 5.08mm - 3.63mm 60.0°

Part Number: TUN6859917 ISO: 22IRN60 TH10 ANSI:22IRN60 TH10
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$19.11
This product has a minimum quantity of 10
SKU: 1028797

Description

TUNGALOY 6859917 Triangle Insert Positive Uncoated Uncoated cemented carbide.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Right Hand
Thread Type 60.0°
Inter/Extern Internal
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 22
Thread Pitch 5.00TPI - 7.00TPI 5.08MM - 3.63MM
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0098 0.25MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Grade TH10
Compatibility & Fit
Insert Fits ISO Thread
