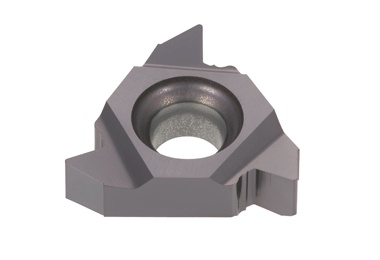

Picture of Tungaloy 16ERAG60-B AH725 Insert Iso Thread Partial Profile AlTiN 8.00TPI - 48.00TPI 3.18mm - 0.53mm 60.0°

Tungaloy 16ERAG60-B AH725 Insert Iso Thread Partial Profile AlTiN 8.00TPI - 48.00TPI 3.18mm - 0.53mm 60.0°

Part Number: TUN5901519

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1003129
Vendor: Sussex Tool and Supply
$25.00
This product has a minimum quantity of 10

TUNGALOY AlTiN coated thread insert with 60.0° profile. Available in 8 to 48 TPI, sizes 3.18mm to 0.53mm. Grade AH725, model 16ERAG60-B. Made in USA: No, shipped from ILLINOIS.

Key Details

Materials & Finish

  • Coating: AlTiN
  • Grade: AH725

Thread & Fittings

  • Thread Type: 60.0°

Grades & Coatings

  • Alternate Description: TUNGALOY 5901519 Triangle Insert Positive AlTiN 16ERAG60-B AH725 16ERAG60-B AH725

Other Details

  • Brand: TUNGALOY
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Provides threading with 60.0° profile. Functions as partial profile insert for thread cutting. Made with AlTiN coating for wear resistance.

Composition

Tungaloy 16ERAG60-B AH725 AlTiN insert. Thread type 60.0°. Grade AH725.

Typical Uses

Used in threading operations at 3.18mm to 0.53mm. Suitable for 8.00TPI to 48.00TPI ranges. Applied in machining with partial profile thread cuts.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating AlTiN
Insert Or Tool Insert
Insert Application General Purpose
Corner Radius 0.0024 0.06MM
Insert Style ISO
Insert Shape Or Cutter Pocket Shape Triangle
Insert Type Positive
Insert Size (IC) 16
Grade AH725
Insert Fits Iso Thread
Hand Right Hand
Thread Pitch 8.00TPI - 48.00TPI 3.18MM - 0.53MM
Thread Type 60.0°
Inter Or Extern External
Full or Partial Profile Partial Profile
Thread Teeth 1
