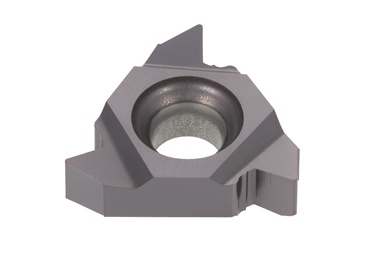

Picture of Tungaloy 16ERA60-B AH725 Insert Iso Thread Partial Profile AlTiN 16.00TPI - 48.00TPI 1.59mm - 0.53mm 60.0°

Tungaloy 16ERA60-B AH725 Insert Iso Thread Partial Profile AlTiN 16.00TPI - 48.00TPI 1.59mm - 0.53mm 60.0°

Part Number: TUN5921206

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1001951
Vendor: Sussex Tool and Supply
$25.00
This product has a minimum quantity of 10

TUNGALOY AlTiN insert has 60 degree thread partial profile. Thread range is 16.00 to 48.00 TPI. Size varies from 1.59mm to 0.53mm. Grade is AH725.

Key Details

Materials & Finish

  • Coating: AlTiN
  • Grade: AH725

Thread & Fittings

  • Thread Type: 60.0°

Grades & Coatings

  • Alternate Description: TUNGALOY 5921206 Triangle Insert Positive AlTiN 16ERA60-B AH725 16ERA60-B AH725

Other Details

  • Brand: TUNGALOY
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Provides threading with 60.0° profile. Functions as partial thread insert. Operates at 16.00TPI to 48.00TPI.

Composition

AlTiN coating. 16ERA60-B AH72 Tungaloy grade.

Typical Uses

Used in threading operations. Fits 1.59mm to 0.53mm thread sizes. Applied in machining with 60.0° thread type.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating AlTiN
Insert Or Tool Insert
Insert Application General Purpose
Corner Radius 0.0020 0.05MM
Insert Style ISO
Insert Shape Or Cutter Pocket Shape Triangle
Insert Type Positive
Insert Size (IC) 16
Grade AH725
Insert Fits Iso Thread
Hand Right Hand
Thread Pitch 16.00TPI - 48.00TPI 1.59MM - 0.53MM
Thread Type 60.0°
Inter Or Extern External
Full or Partial Profile Partial Profile
Thread Teeth 1
