Trigon

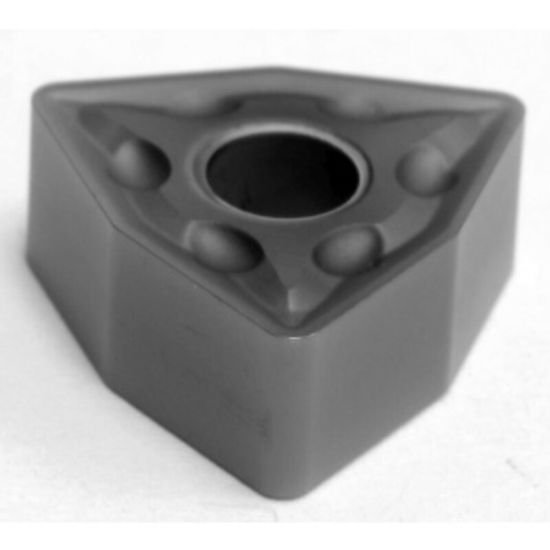

WNMG332EMU AC5025S Sumitomo WNMG060408EMU AC5025S Trigon Negative Carbide 0.0313 0.80mm Radius Medium, Semi Finishing

WNMG432EGU AC5015S Sumitomo WNMG080408EGU AC5015S Trigon Negative Carbide 0.0313 0.80mm Radius Medium, Semi Finishing

WNMG332EEX AC5015S Sumitomo WNMG060408EEX AC5015S Trigon Negative Carbide 0.0313 0.80mm Radius Medium, Semi Finishing

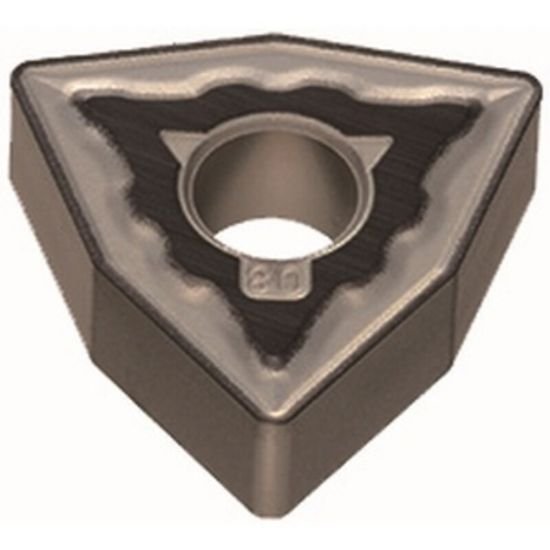

WNMG433EEM AC5015S Sumitomo WNMG080412EEM AC5015S Trigon Negative Carbide 0.0469 1.19mm Radius Medium, Semi Finishing

WNMG433EGU AC5025S Sumitomo WNMG080412EGU AC5025S Trigon Negative Carbide 0.0469 1.19mm Radius Medium, Semi Finishing

WNMG432EEX AC5015S Sumitomo WNMG080408EEX AC5015S Trigon Negative Carbide 0.0313 0.80mm Radius Medium, Semi Finishing

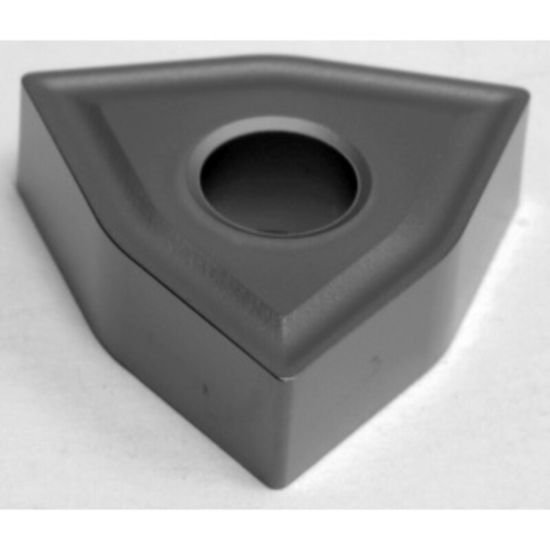

WNMG433ENZ AC5015S Sumitomo WNMG080412ENZ AC5015S Trigon Negative Carbide 0.0469 1.19mm Radius Medium, Semi Finishing

WNMG432ENZ AC5025S Sumitomo WNMG080408ENZ AC5025S Trigon Negative Carbide 0.0313 0.80mm Radius Medium, Semi Finishing

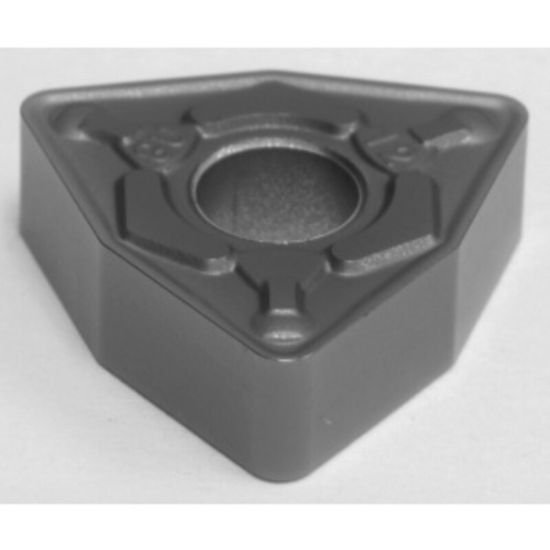

WNMG432EGU AC5025S Sumitomo WNMG080408EGU AC5025S Trigon Negative Carbide 0.0313 0.80mm Radius Medium, Semi Finishing

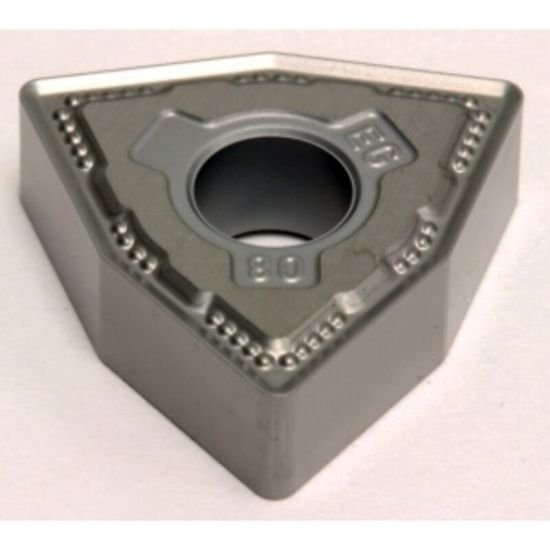

WNMG333EEG AC5015S Sumitomo WNMG060412EEG AC5015S Trigon Negative Carbide 0.0469 1.19mm Radius Medium, Semi Finishing

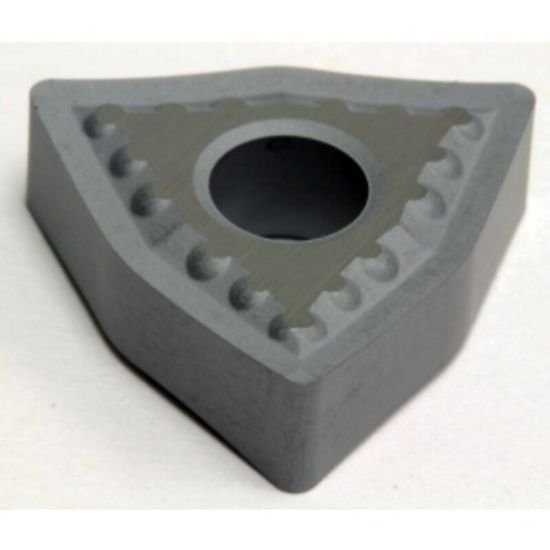

WNMG433EUP AC5015S Sumitomo WNMG080412EUP AC5015S Trigon Negative Carbide 0.0469 1.19mm Radius Medium, Semi Finishing

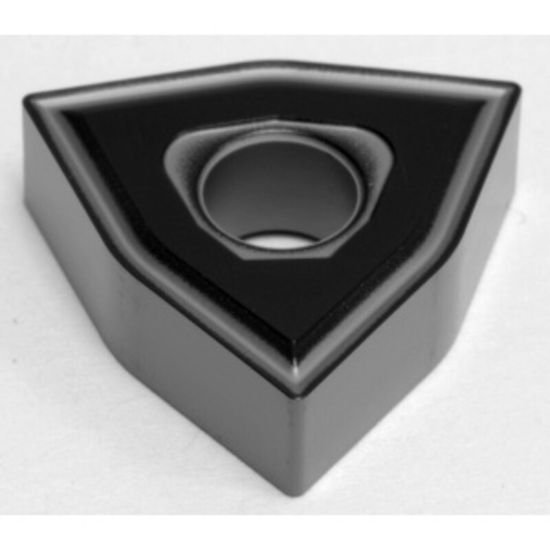

WNMG433EEX AC5015S Sumitomo WNMG080412EEX AC5015S Trigon Negative Carbide 0.0469 1.19mm Radius Medium, Semi Finishing
