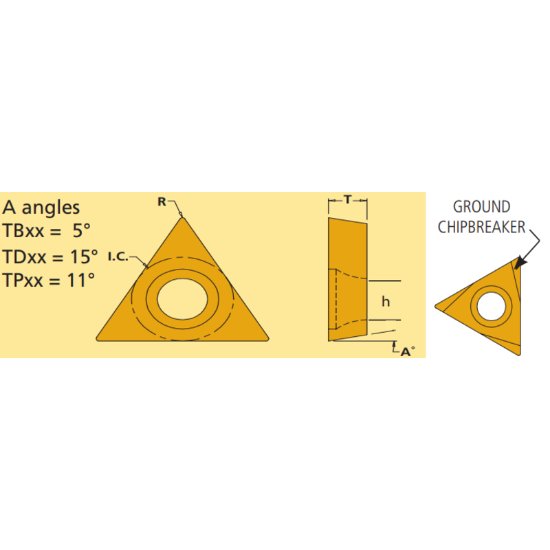

Picture of TPGH322 CV6 Everede Tool TPGH160404 CV6 Triangle Positive Carbide Finishing, Semi Finishing

TPGH322 CV6 Everede Tool TPGH160404 CV6 Triangle Positive Carbide Finishing, Semi Finishing

Part Number: EVE04317 ISO: TPGH160404 CV6 ANSI:TPGH322 CV6
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$18.05
This product has a minimum quantity of 10
SKU: 1040928

Description

EVEREDE TOOL TPGH160404 CV6 Positive Triangle Insert Multi-layer CVD TiN/TiC/TiCN/P30 (gold) coating. General purpose steel cutting grade with minimum hone. Works well in low to medium heat applications and at low to medium speeds and feeds.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Finishing, Semi Finishing
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Dimensions & Sizing
Insert Size Ic 16 "32"
Cutting Width 0.0310 0.79MM
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <40HRC Steel, Ductile Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TiN + TIC + TiCN + P30
Grade CV6
Compatibility & Fit
Insert Fits Triangle
