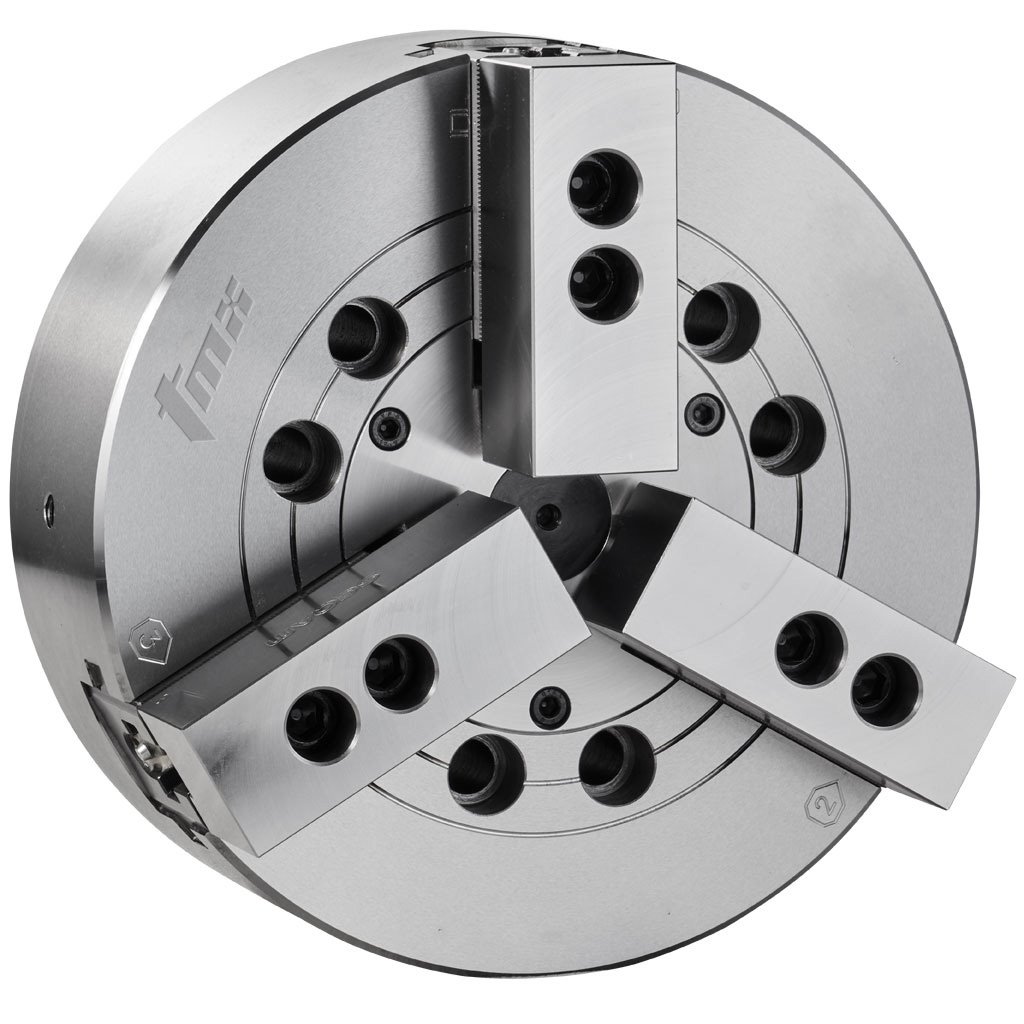

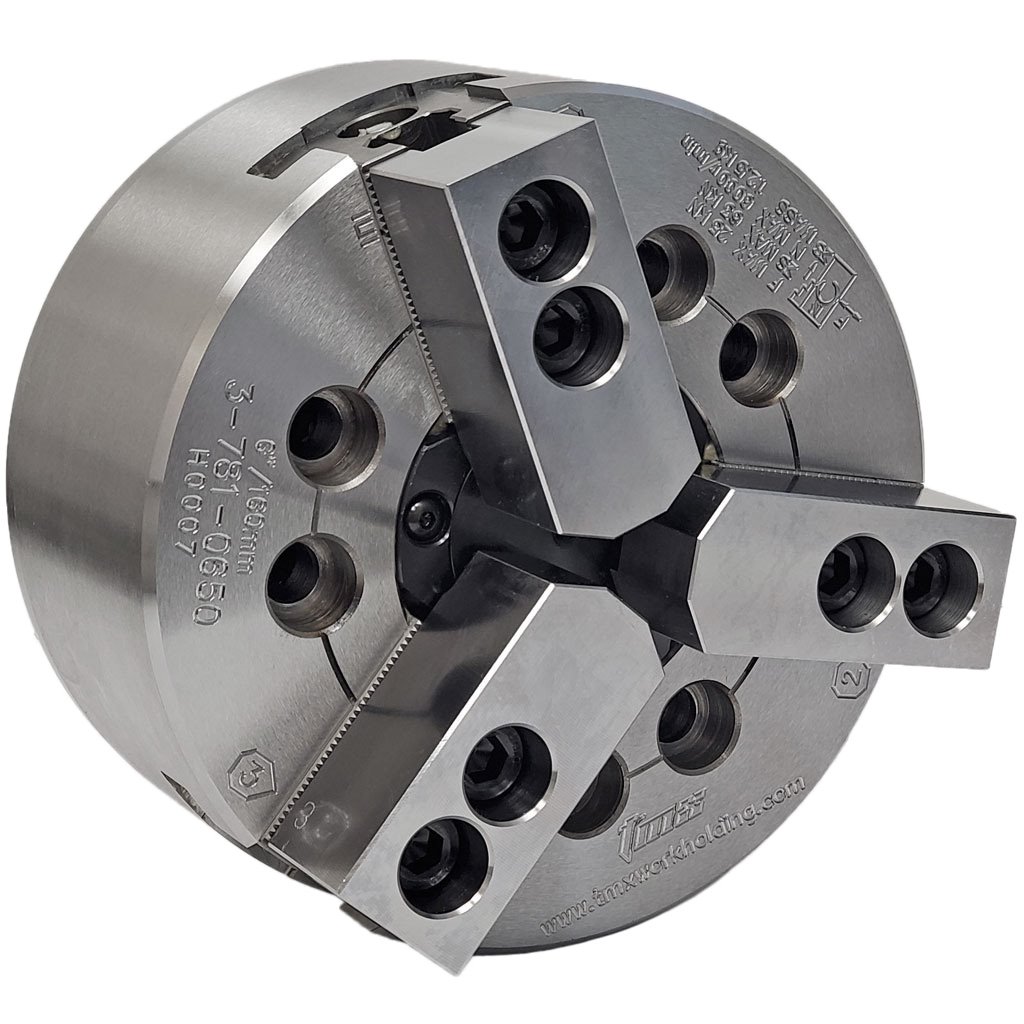

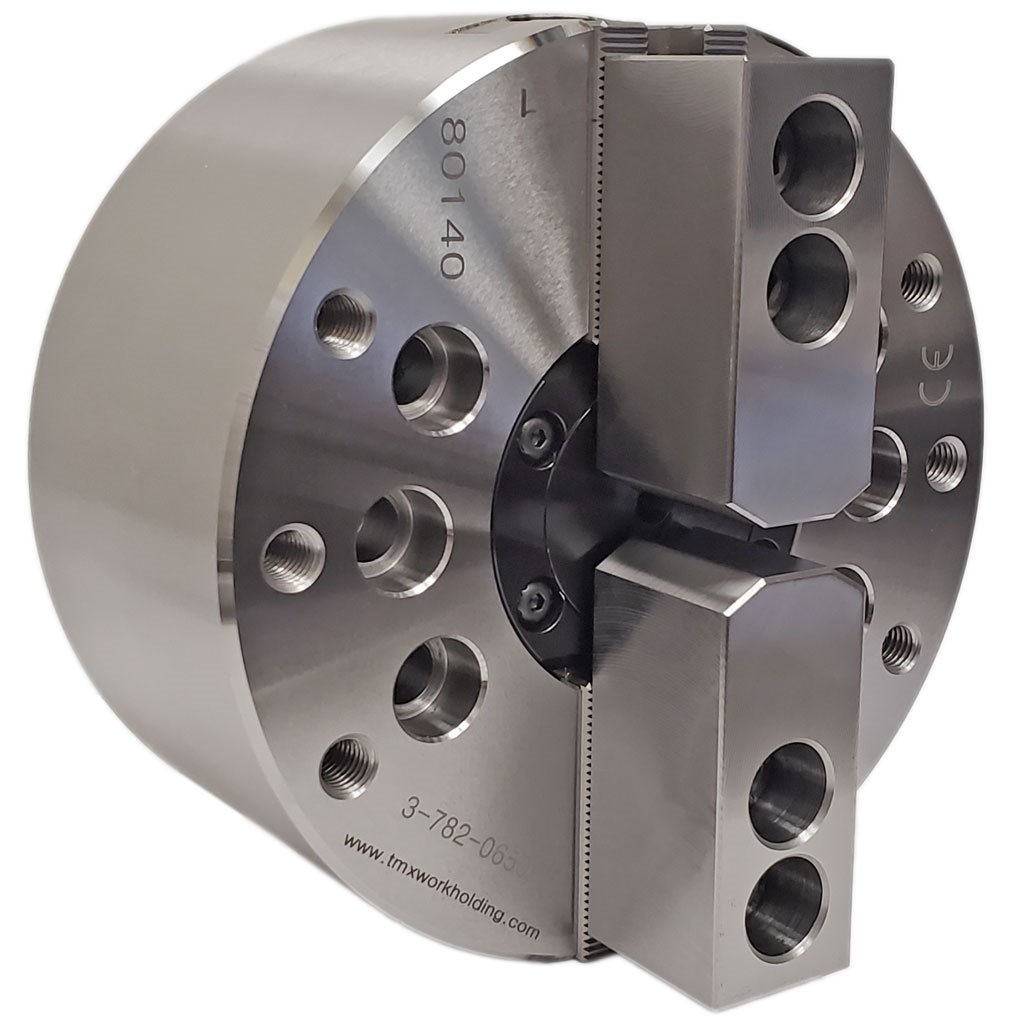

Toolmex 3 Jaw 6" (169 mm) Diameter Chuck Power

Part Number: TOO3-782-0650
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1423676

Description

6In 2-Jaw Large Hole Power Chuck, With An A2-5 Mount, Tmx Work Holding Solutions By Toolmex Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Type Of Tool Chuck
Dimensions & Sizing
Overall Length 3.3070 84.00MM, 3.5433 90.00MM
Shank/Pilot Dia 1.2600 32.00MM
Tool Dia 6.6540 169.00MM
Flange Dia 5.512
Clamping Stroke 0.217
Number Of Jaws 3
Performance & Capacity
Max RPM 6000
Bar Capacity 1.811
Min Work Piece Dim 0.748
Max Work Piece Dim 6.496
Max Clamping Force Lbs 14137.2
Materials & Finish
Tool Material Steel
Compatibility & Fit
Spindle Nose A2-5
Chuck Mount Threads M10
Spindle Mount Thread M16x2.0
