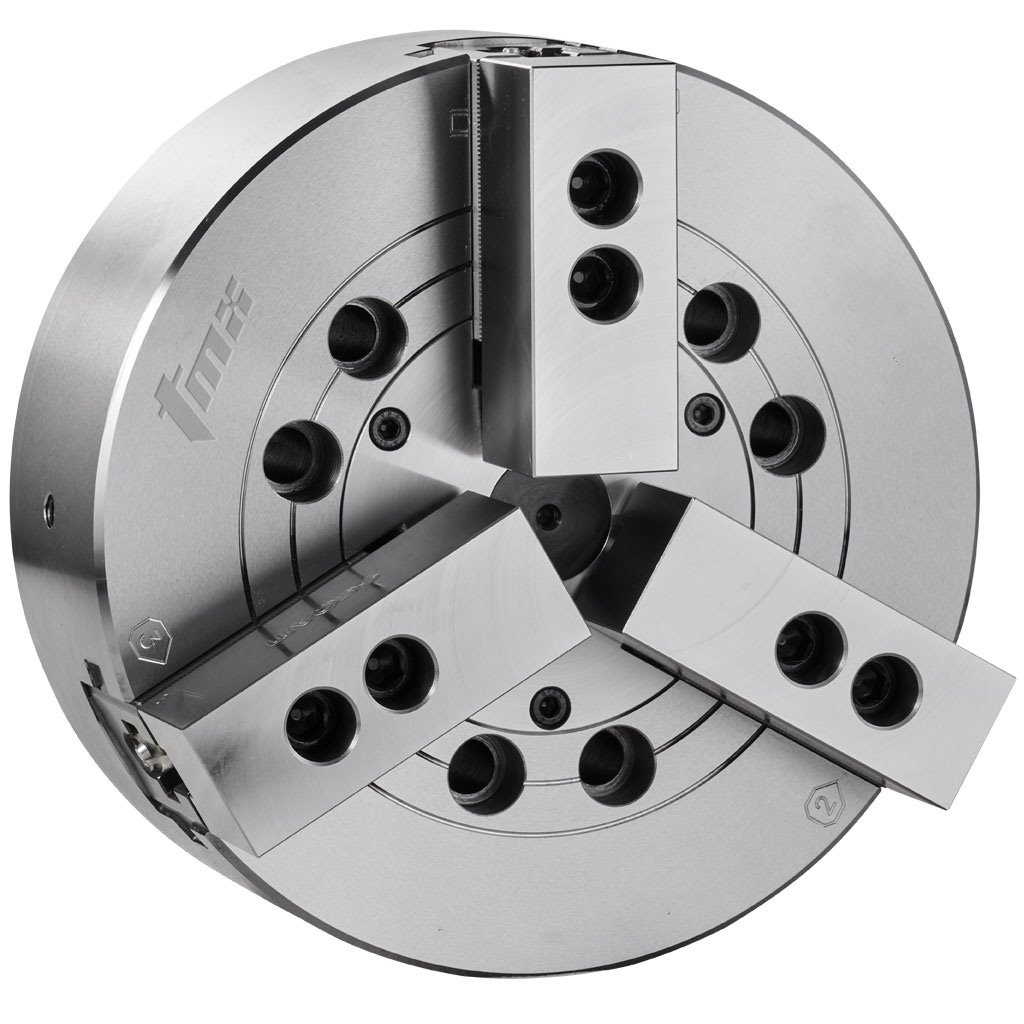

Toolmex 3 Jaw 24" (610 mm) Diameter Chuck Power

Part Number: TOO3-781-2415
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1423671
Vendor: Sussex Tool and Supply
$20,995.40

Description

3 Jaw, 24" (610 MM) Diameter, A2-15, High Speed, Hydraulic, Power, Lathe Chuck, Large Bore, 6.4960? Through Hole, Drawbar, Max Gripping Force 234(23861) N(Kgf), 3MM X 60 Serrated Jaw Interface, 110MM To 610MM Jaw Capacity, 1,400 Rpm, Steel Body Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Type Of Tool Chuck
Dimensions & Sizing
Tool Dia 24.0160 610.00MM
Flange Dia 14.961
Overall Length 5.7480 146.00MM
Shank/Pilot Dia 2.1650 55.00MM
Clamping Stroke 0.630
Number Of Jaws 3
Performance & Capacity
Bar Capacity 6.496
Max Work Piece Dim 24.016
Max RPM 6000
Min Work Piece Dim 6.693
Max Clamping Force Lbs 61243.6
Materials & Finish
Tool Material Steel
Compatibility & Fit
Chuck Mount Threads M22
Spindle Nose A2-15
Spindle Mount Thread M30x3.12, M30x3.11
