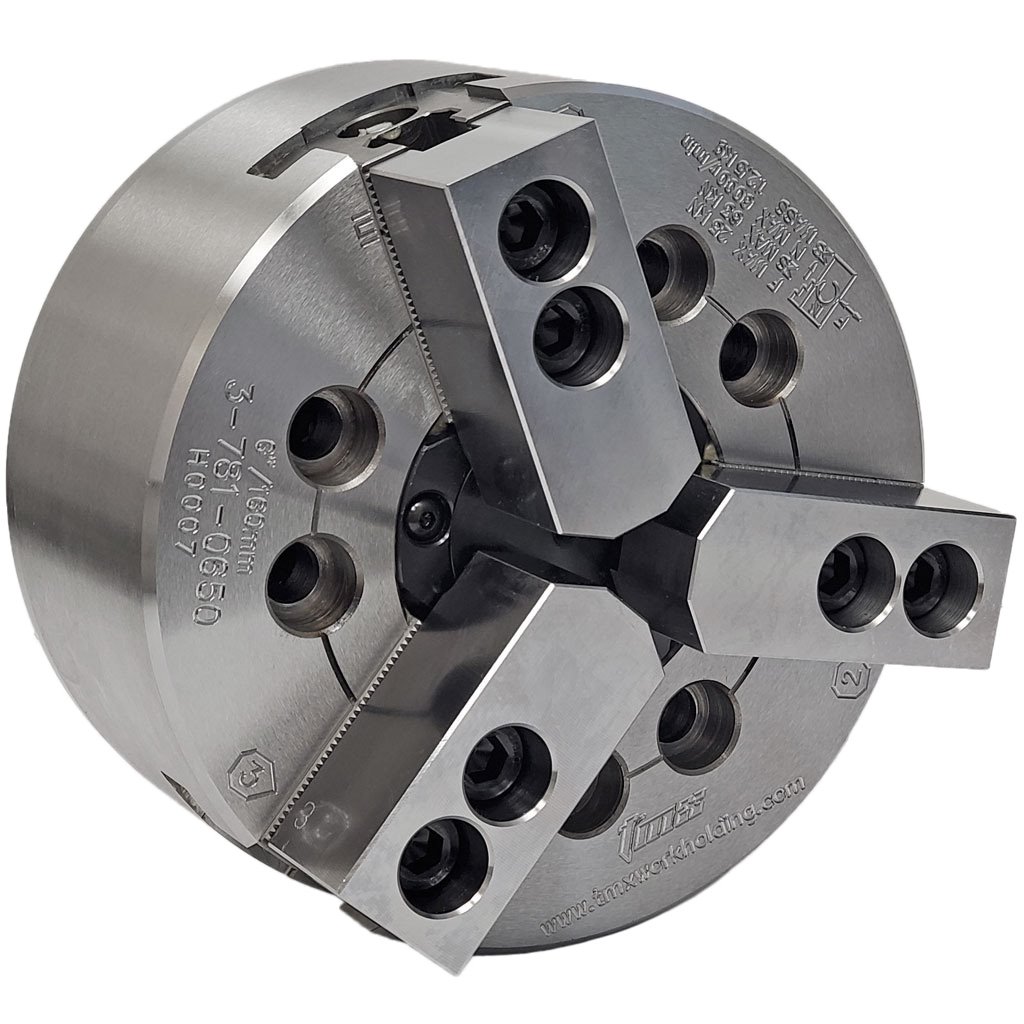

Picture of Toolmex 3 Jaw 21" (530 mm) Diameter Chuck Power

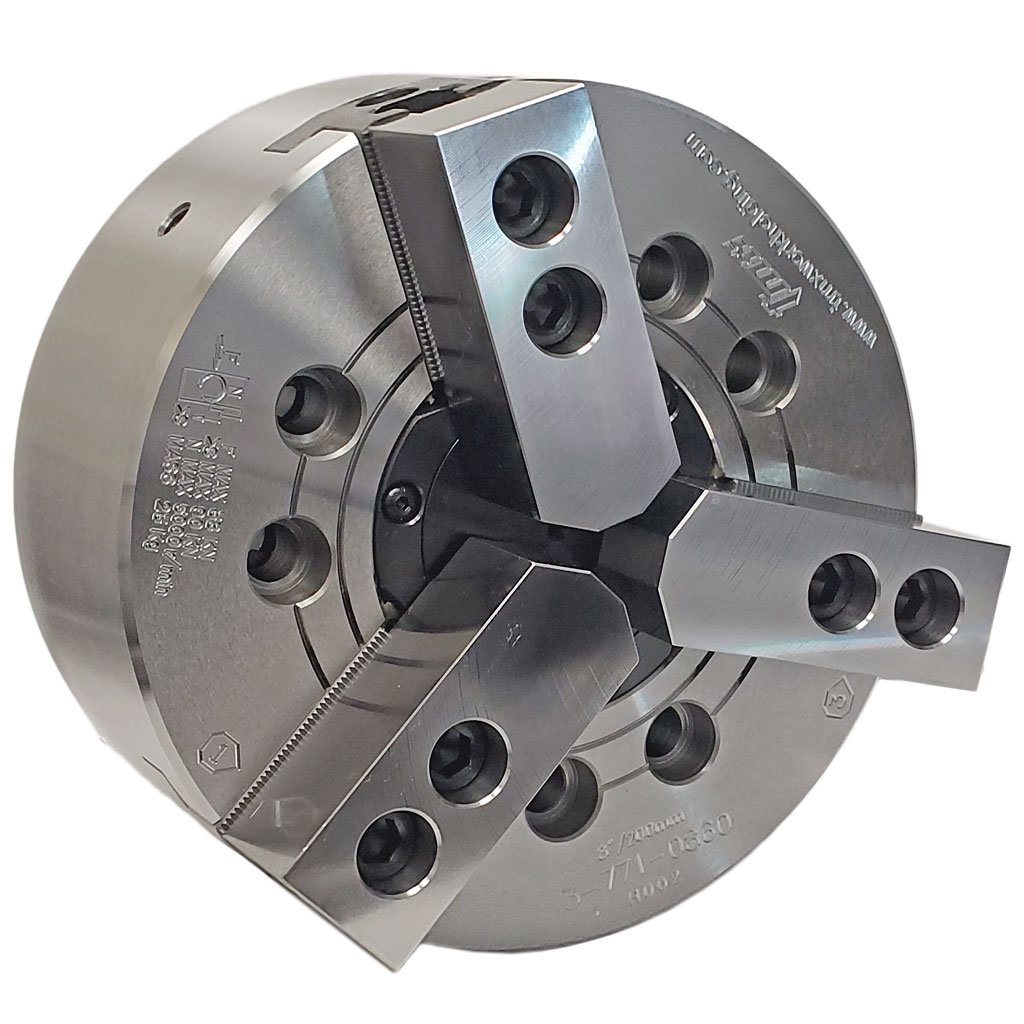

Picture of Toolmex 3 Jaw 21" (530 mm) Diameter Chuck Power

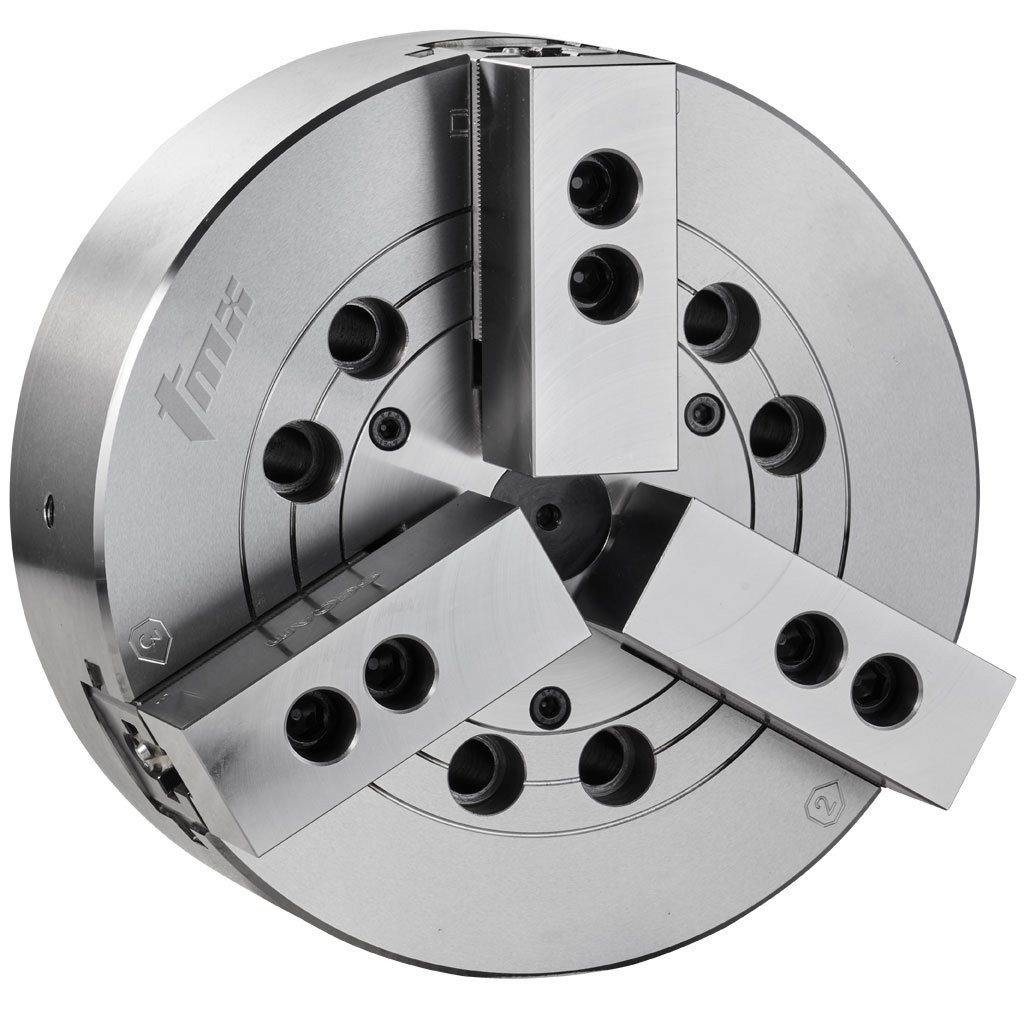

Picture of Toolmex 3 Jaw 21" (530 mm) Diameter Chuck Power
Picture of Toolmex 3 Jaw 21" (530 mm) Diameter Chuck Power

Toolmex 3 Jaw 21" (530 mm) Diameter Chuck Power

Part Number: TOO3-781-2120
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1423670
Vendor: Sussex Tool and Supply
$17,737.50

Description

3 Jaw, 21" (530 MM) Diameter, A2-20, High Speed, Hydraulic, Power, Lathe Chuck, Large Bore, 5.5118? Through Hole, Drawbar, Max Gripping Force 234(23861) N(Kgf), 3MM X 60 Serrated Jaw Interface, 84MM To 530MM Jaw Capacity, 1,700 Rpm, Steel Body Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Type Of Tool Chuck
Dimensions & Sizing
Tool Dia 20.8660 529.90MM
Flange Dia 14.961
Shank/Pilot Dia 2.1650 55.00MM
Number Of Jaws 3
Overall Length 6.3386 161.00MM
Clamping Stroke 0.417
Performance & Capacity
Max Work Piece Dim 20.866
Max RPM 1700
Min Work Piece Dim 3.228
Max Clamping Force Lbs 49412
Materials & Finish
Tool Material Steel
Compatibility & Fit
Chuck Mount Threads M22
Spindle Nose A2-15, A2-20
Spindle Mount Thread M30x3.9
