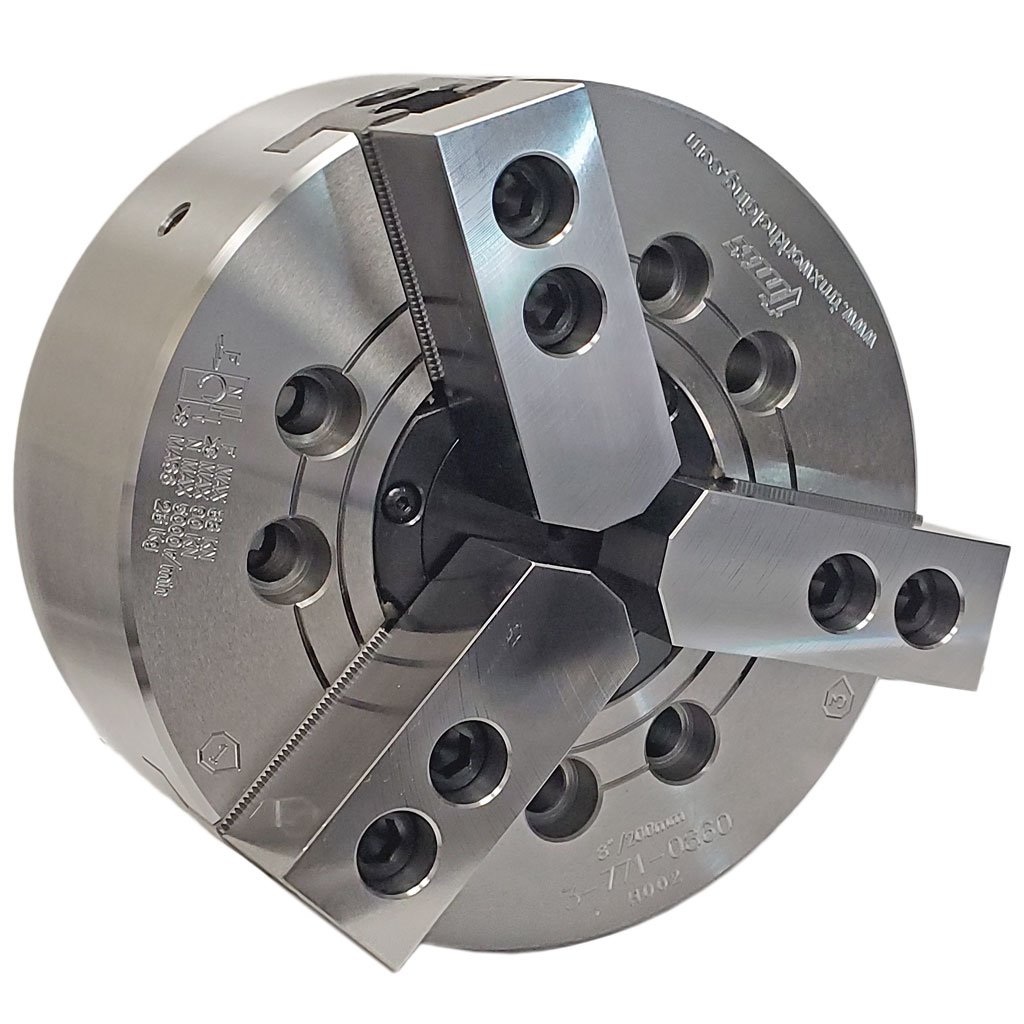

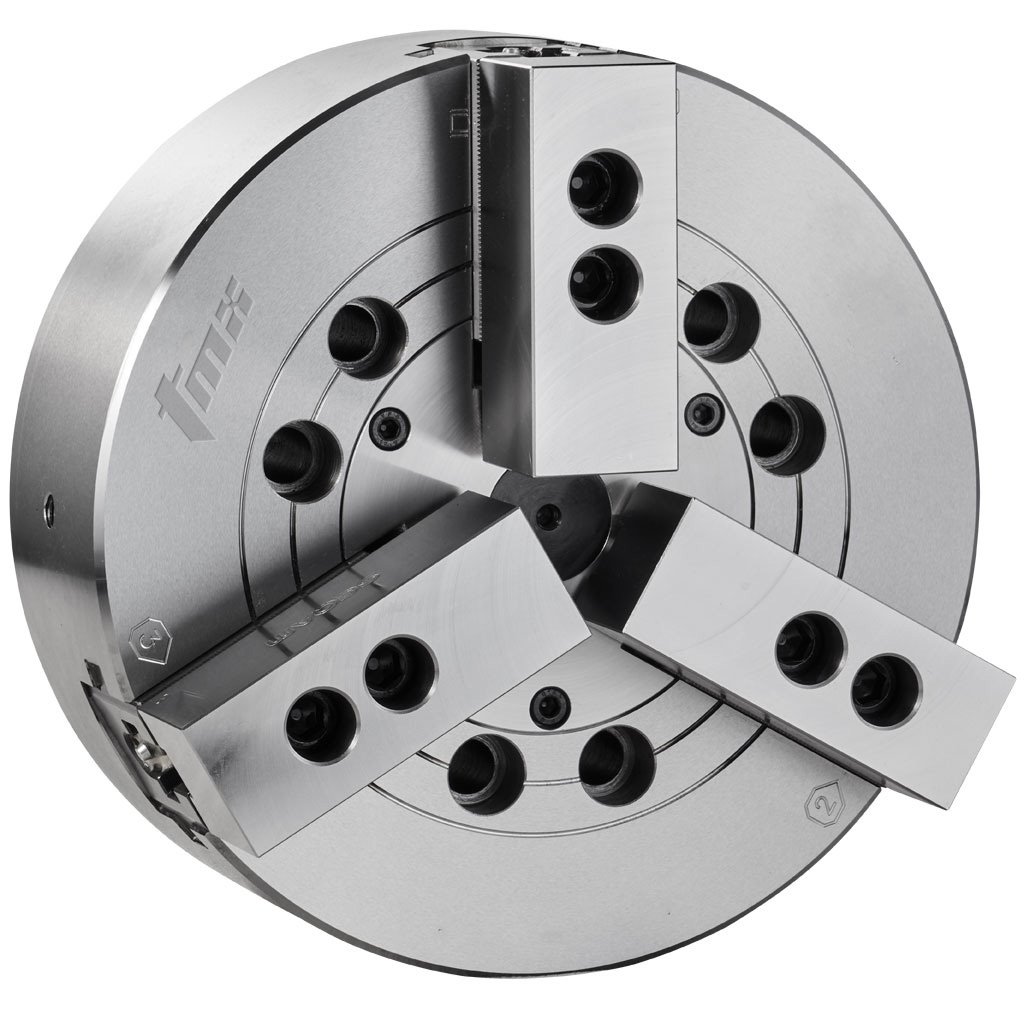

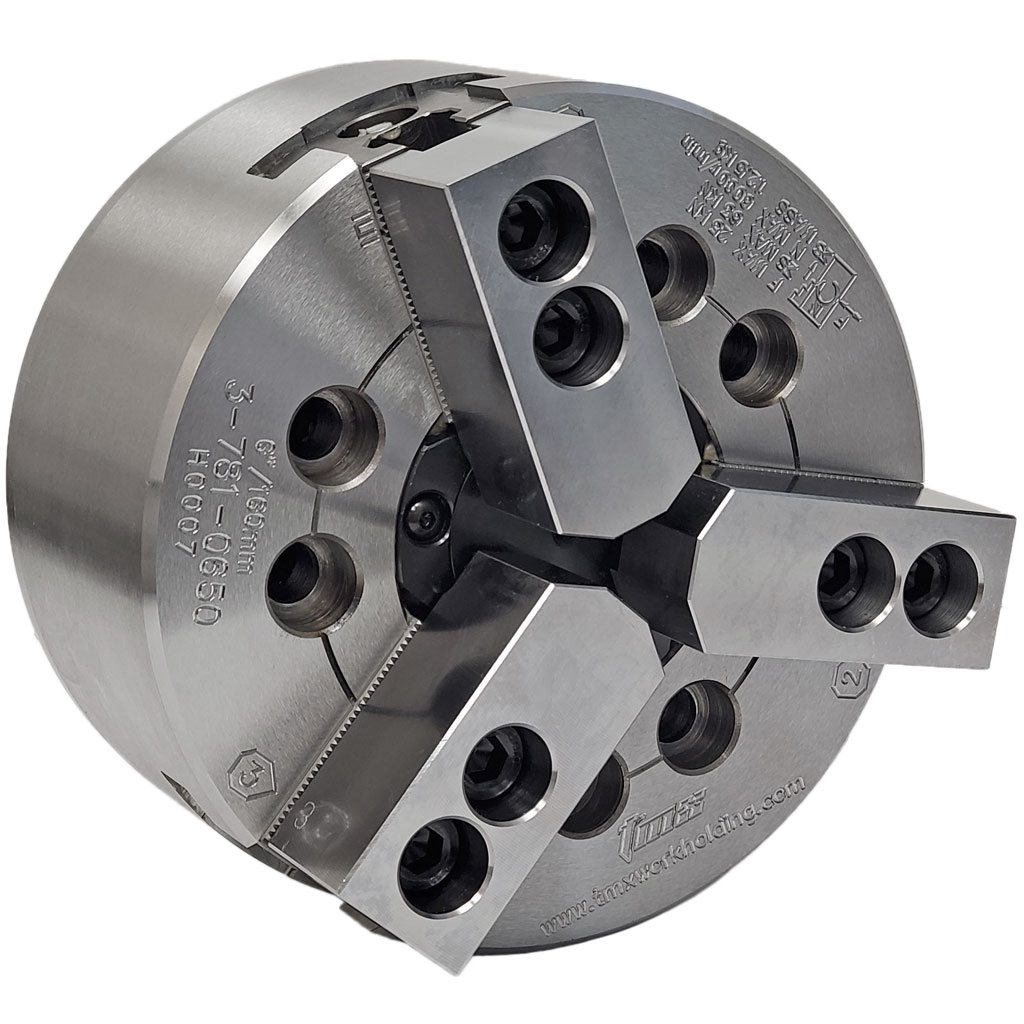

Toolmex 3 Jaw 12" (315 mm) Diameter Chuck Power

Part Number: TOO3-780-2400
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1423658
Vendor: Sussex Tool and Supply
$19,377.63

Description

3 Jaw, 24" (610 MM) Diameter, Plain Back, High Speed, Hydraulic, Power, Lathe Chuck, Large Bore, 6.4960? Through Hole, Drawbar, Max Gripping Force 234(23861) N(Kgf), 3MM X 60 Serrated Jaw Interface, 110MM To 610MM Jaw Capacity, 1,400 Rpm, Steel Body
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Type Of Tool Chuck
Dimensions & Sizing
Shank/Pilot Dia 1.4960 38.00MM
Overall Length 4.9606 126.00MM
Tool Dia 12.4020 315.00MM
Clamping Stroke 0.402
Flange Dia 11.811
Number Of Jaws 3
Performance & Capacity
Bar Capacity 4.055
Max RPM 3000
Min Work Piece Dim 1.772
Max Work Piece Dim 12.402
Max Clamping Force Lbs 33000
Materials & Finish
Tool Material Steel
Compatibility & Fit
Spindle Nose A2-11
Chuck Mount Threads M20
Spindle Mount Thread M20x2.5
