Picture of Toolmex 3-825-3220P Scroll Chuck 1.060 Bar Capacity 3 Jaws 31.5000 800.10mm Dia

Toolmex 3-825-3220P Scroll Chuck 1.060 Bar Capacity 3 Jaws 31.5000 800.10mm Dia

Part Number: TOO3-825-3220P
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1423866

Description

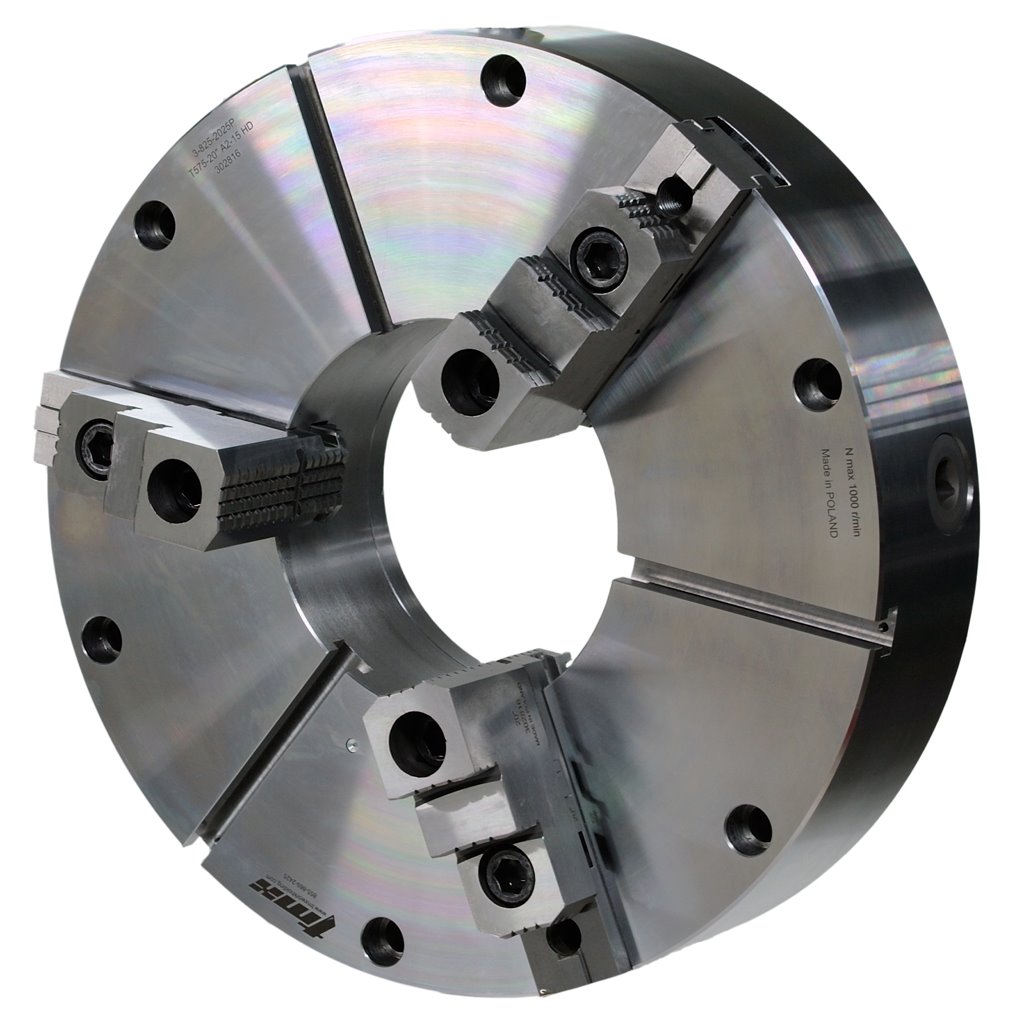

3 Jaw, 32" (800 MM Actual) Diameter, A2-20, Forged Steel, Extra Heavy Duty, Oil County, Self Centering, Manual Scroll Lathe Chuck, 12.55" Through Hole (Bore), Max Gripping Force 13000 (Dan), American Standard Tongue And Grove 2-Piece Hard Jaws Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Type Of Tool Chuck
Dimensions & Sizing
Overall Length 7.0100 178.05MM
Tool Dia 31.5000 800.10MM
Bolt Circle 13.000
Number Of Jaws 3
Performance & Capacity
Max RPM 764
Bar Capacity 11.060
Max Clamping Force Lbs 30349
Materials & Finish
Tool Material Steel
Compatibility & Fit
Spindle Nose A2-15
