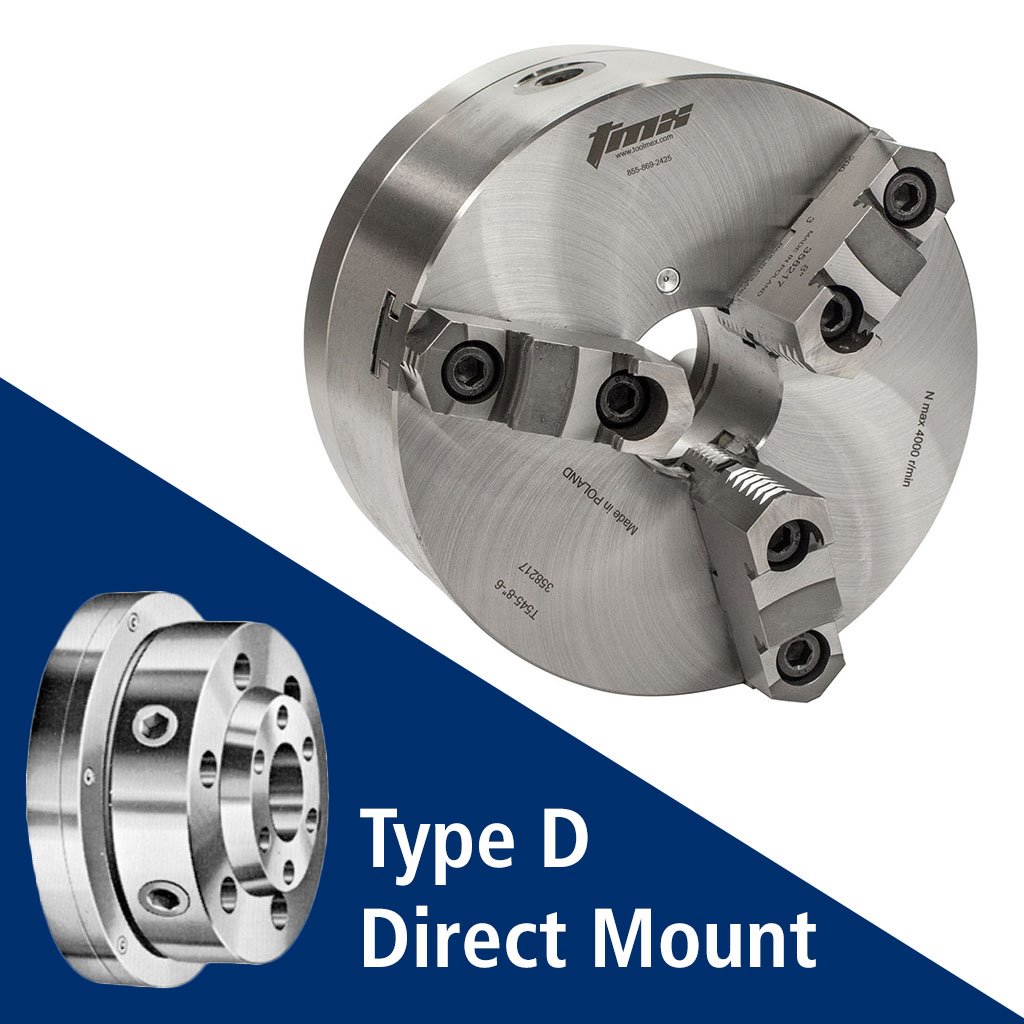

Picture of Toolmex 3-823-1638P Scroll Chuck .350 Bar Capacity 3 Jaws 15.7500 400.00mm Dia

Toolmex 3-823-1638P Scroll Chuck .350 Bar Capacity 3 Jaws 15.7500 400.00mm Dia

Part Number: TOO3-823-1638P

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TOOLMEX
SKU: 1423854
Vendor: Sussex Tool and Supply
$5,981.00
3-Jaw Precision Forged Steel Body Scroll Chuck With Two-Piece Hard Reversible Jaws, Camlock D, 16In D1-8, Tmx By Toolmex Made In Europe (Compare To Bison? Models 3245 & 3545 - Series 7-803 & 7-823) Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type Spindle Nose
Overall Length 5.4900 139.45MM
Tool Dia 15.7500 400.00MM
Type Of Tool Chuck
Max RPM 4496
Bar Capacity 5.350
Bolt Circle 6.740
Spindle Nose D1-8
Number Of Jaws 3
Max Clamping Force Lbs 6500
Chuck Mount Threads M20
