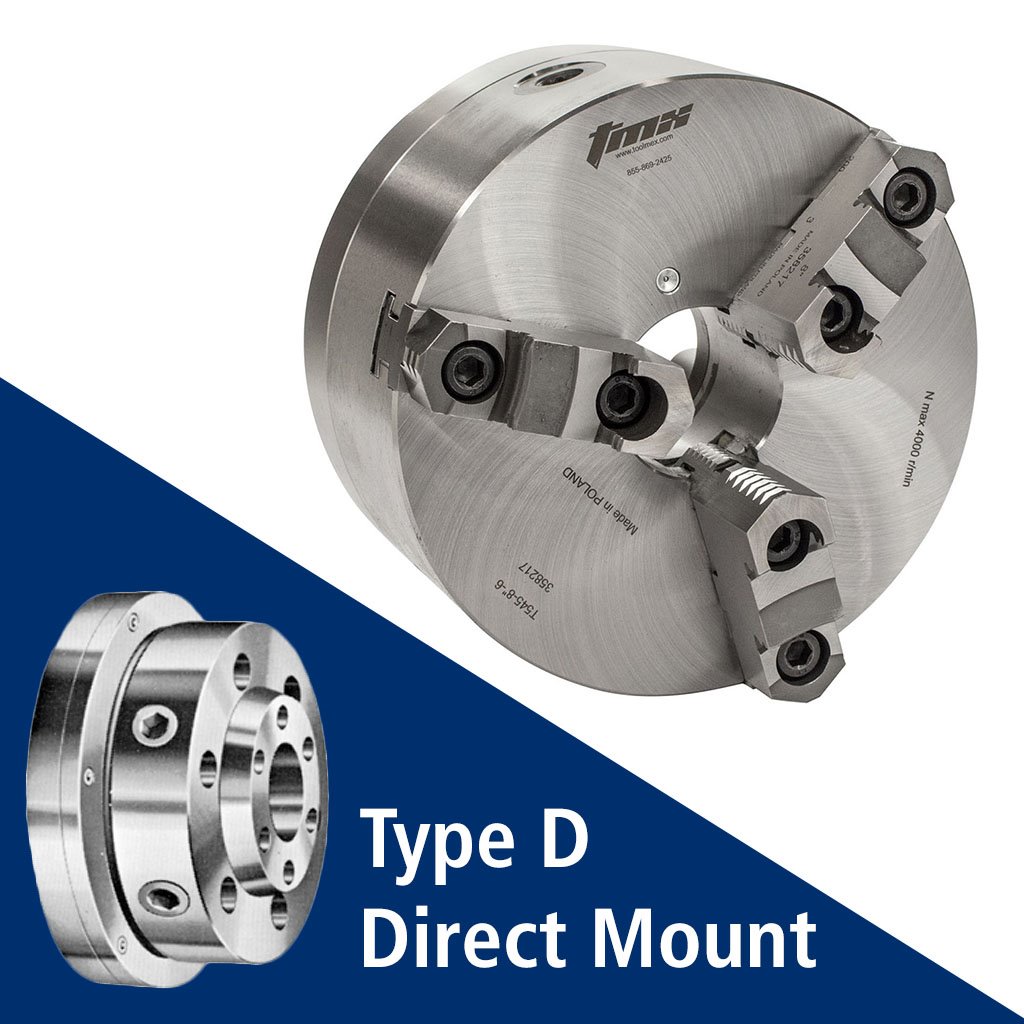

Picture of Toolmex 3-823-1038P Scroll Chuck .990 Bar Capacity 3 Jaws 9.8400 249.90mm Dia

Toolmex 3-823-1038P Scroll Chuck .990 Bar Capacity 3 Jaws 9.8400 249.90mm Dia

Part Number: TOO3-823-1038P
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1423849

Description

3-Jaw Precision Forged Steel Body Scroll Chuck With Two-Piece Hard Reversible Jaws, Camlock D, 10In D1-8, Tmx By Toolmex Made In Europe (Compare To Bison? Models 3245 & 3545 - Series 7-803 & 7-823) Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Type Of Tool Chuck
Dimensions & Sizing
Overall Length 4.7100 119.63MM
Tool Dia 9.8400 249.90MM
Bolt Circle 6.740
Number Of Jaws 3
Performance & Capacity
Max RPM 7868
Bar Capacity 2.990
Max Clamping Force Lbs 4600
Materials & Finish
Tool Material Steel
Compatibility & Fit
Spindle Nose D1-8
Chuck Mount Threads M20
