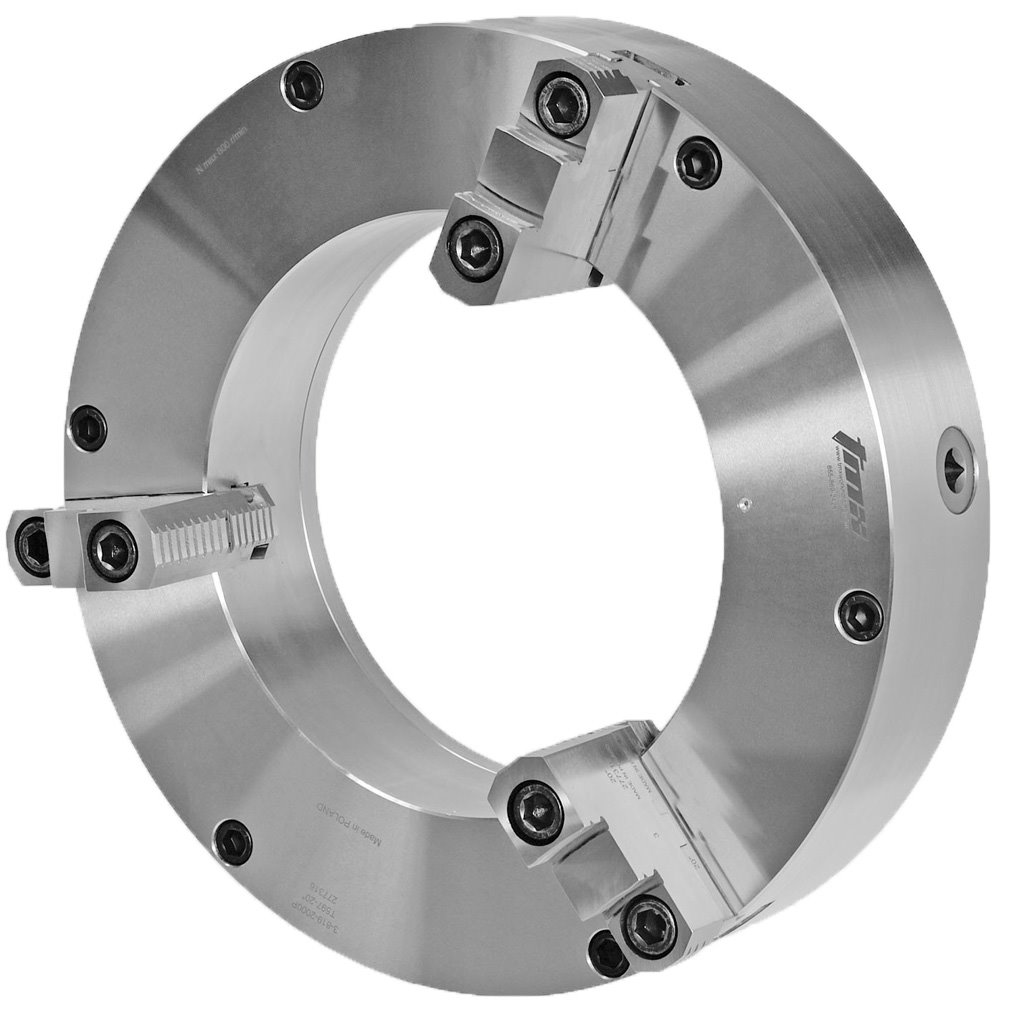

Picture of Toolmex 3-819-2000P Scroll Chuck 2.600 Bar Capacity 3 Jaws 19.6900 500.10mm Dia

Toolmex 3-819-2000P Scroll Chuck 2.600 Bar Capacity 3 Jaws 19.6900 500.10mm Dia

Part Number: TOO3-819-2000P
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1423823
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

3-Jaw (2 Piece) Precision Scroll Chuck Forged Steel Body 20In Plain Back, Bore 12.625In, Front & Back Mount, Hard Top & Soft-Long Jaws Included, 515-462-320MM, Tmx By Toolmex Made In Europe Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Type Of Tool Chuck
Dimensions & Sizing
Overall Length 4.4800 113.79MM
Tool Dia 19.6900 500.10MM
Bolt Circle 18.950
Number Of Jaws 3
Performance & Capacity
Max RPM 800
Bar Capacity 12.600
Min Work Piece Dim 10.390
Max Work Piece Dim 20.310
Max Clamping Force Lbs 7200
Materials & Finish
Tool Material Steel
Compatibility & Fit
Chuck Mount Threads M16
