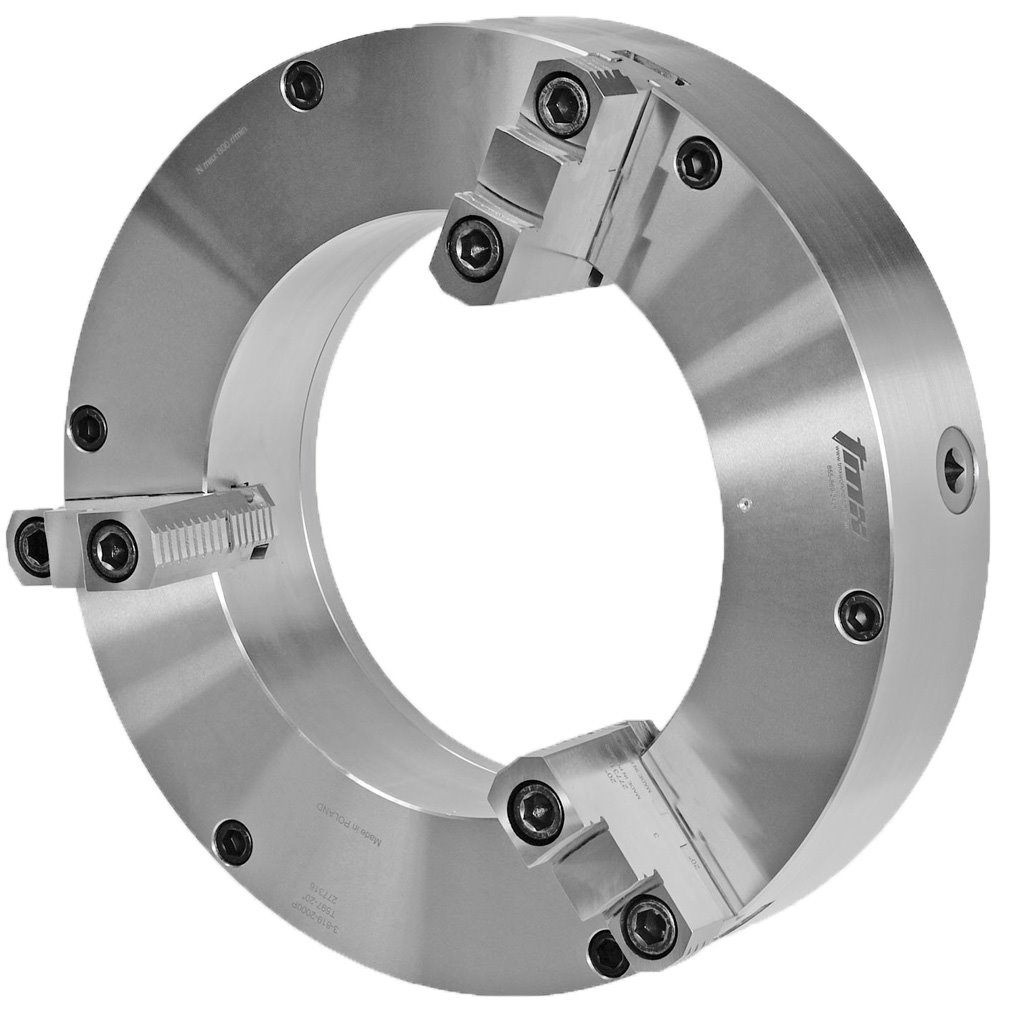

Picture of Toolmex 3-819-1200P Scroll Chuck .700 Bar Capacity 3 Jaws 12.4000 314.90mm Dia

Toolmex 3-819-1200P Scroll Chuck .700 Bar Capacity 3 Jaws 12.4000 314.90mm Dia

Part Number: TOO3-819-1200P
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1423821
Vendor: Sussex Tool and Supply
$5,894.00

Description

3-Jaw (2 Piece) Precision Scroll Chuck Forged Steel Body 12In Plain Back, Bore 5.71In, Front & Back Mount, Hard Top & Soft-Long Jaws Included, 315-286-145MM, Max Rpm 1400, Tmx By Toolmex Made In Europe Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Type Of Tool Chuck
Dimensions & Sizing
Overall Length 3.8100 96.77MM
Tool Dia 12.4000 314.90MM
Bolt Circle 11.260
Number Of Jaws 3
Performance & Capacity
Max RPM 1400
Bar Capacity 5.700
Min Work Piece Dim 1.570
Max Work Piece Dim 12.400
Max Clamping Force Lbs 5500
Materials & Finish
Tool Material Steel
Compatibility & Fit
Chuck Mount Threads M16
