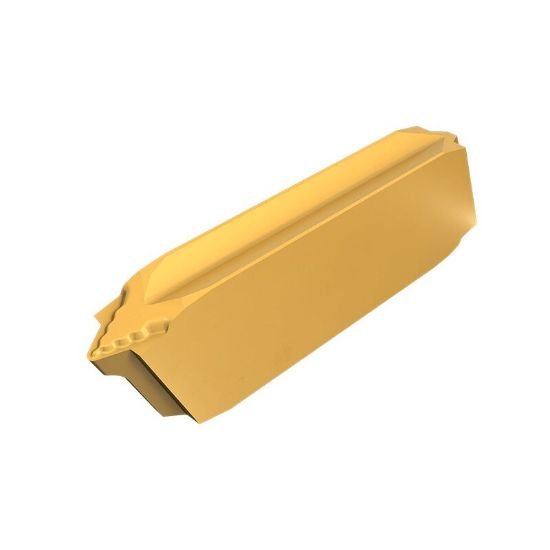

Picture of Tip 4P2.5-ISO IC908 Iscar 6403295 Groove Threading,Threading Insert 0.0140 0.36mm Radius 2.50mm Metric

Tip 4P2.5-ISO IC908 Iscar 6403295 Groove Threading,Threading Insert 0.0140 0.36mm Radius 2.50mm Metric

Part Number: ISC6403295 ISO: TIP 4P2.5-ISO IC908 ANSI:TIP 4P2.5-ISO IC908
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1025825
Vendor: Sussex Tool and Supply
$41.84
This product has a minimum quantity of 10

Description

ISCAR 6403295 Dog Bone Groove Threading Positive TiAlN A tough submicron grain size substrate with a PVD coating, recommended for general use for diverse operations on materials such as steels, alloy steels, austenitic stainless steel and high temperature alloys at a wide range of cutting speeds. Features high wear resistance and chipping durability.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style CUT GRIP
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Hand Neutral
Thread Type METRIC
Inter/Extern Int / Ext
Insert Type/Oriantation Clamp Down
Full Or Partial Profile Full Profile
Dimensions & Sizing
Insert Size Ic 2
Thread Pitch 2.50MM
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0140 0.36MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Grade IC908
