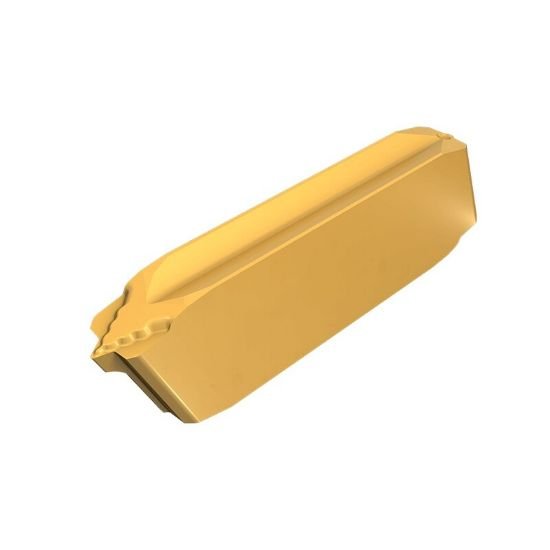

Picture of Tip 2P26-BSW IC08 Iscar 6403471 Groove Threading,Threading Insert 0.0050 0.13mm Radius 26.00TPI Whitworth BSW/BSF/BSP

Tip 2P26-BSW IC08 Iscar 6403471 Groove Threading,Threading Insert 0.0050 0.13mm Radius 26.00TPI Whitworth BSW/BSF/BSP

Part Number: ISC6403471 ISO: TIP 2P26-BSW IC08 ANSI:TIP 2P26-BSW IC08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1025885
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10
ISCAR 6403471 Dog Bone Groove Threading Positive Uncoated An uncoated, fine grain carbide grade. Used for stainless steel and high temperature alloys at low to medium cutting speeds.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Insert/Tool INSERT
Insert Application General Purpose
Corner Radius 0.0050 0.13MM
Insert Style CUT GRIP
Insert Shape/Cutter Pocket Shape Dog Bone
Grade IC08
Insert Type Positive
Insert Size Ic 2
Hand Neutral
Thread Pitch 26.00TPI
Thread Type Whitworth BSW/BSF/BSP
Inter/Extern Int / Ext
Insert Type/Oriantation Clamp Down
Full Or Partial Profile Full Profile
Threed Teeth 1
