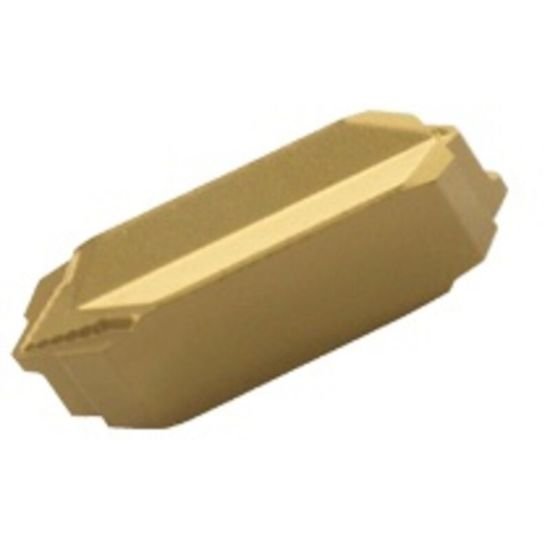

Picture of Tip 2P19-BSPT IC08 Iscar 6403476 Groove Threading,Threading Insert 0.0060 0.15mm Radius 19.00TPI BSPT

Tip 2P19-BSPT IC08 Iscar 6403476 Groove Threading,Threading Insert 0.0060 0.15mm Radius 19.00TPI BSPT

Part Number: ISC6403476 ISO: TIP 2P19-BSPT IC08 ANSI:TIP 2P19-BSPT IC08
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1025889
Vendor: Sussex Tool and Supply
$30.70
This product has a minimum quantity of 10

Description

ISCAR 6403476 Dog Bone Groove Threading Positive Uncoated An uncoated, fine grain carbide grade. Used for stainless steel and high temperature alloys at low to medium cutting speeds.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style CUT GRIP
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Hand Neutral
Thread Type BSPT
Inter/Extern Int / Ext
Insert Type/Oriantation Clamp Down
Full Or Partial Profile Full Profile
Dimensions & Sizing
Insert Size Ic 2
Thread Pitch 19.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0060 0.15MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Grade IC08
