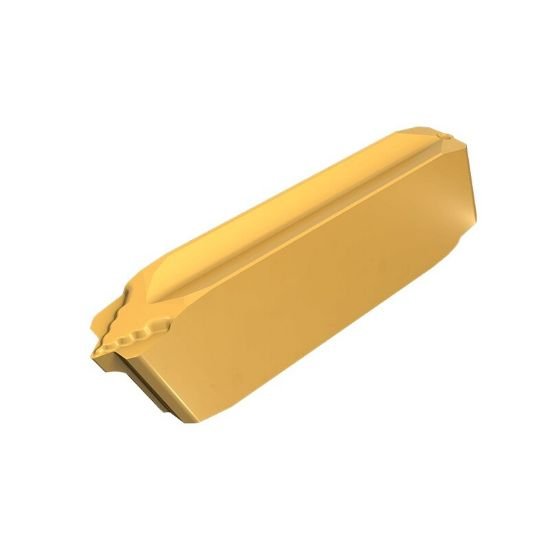

Picture of Tip 2P14-BSW IC08 Iscar 6403465 Groove Threading,Threading Insert 0.0090 0.23mm Radius 14.00TPI Whitworth BSW/BSF/BSP

Tip 2P14-BSW IC08 Iscar 6403465 Groove Threading,Threading Insert 0.0090 0.23mm Radius 14.00TPI Whitworth BSW/BSF/BSP

Part Number: ISC6403465 ISO: TIP 2P14-BSW IC08 ANSI:TIP 2P14-BSW IC08
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1025879
Vendor: Sussex Tool and Supply
$30.70
This product has a minimum quantity of 10

Description

ISCAR 6403465 Dog Bone Groove Threading Positive Uncoated An uncoated, fine grain carbide grade. Used for stainless steel and high temperature alloys at low to medium cutting speeds.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style CUT GRIP
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Hand Neutral
Thread Type Whitworth BSW/BSF/BSP
Inter/Extern Int / Ext
Insert Type/Oriantation Clamp Down
Full Or Partial Profile Full Profile
Dimensions & Sizing
Insert Size Ic 2
Thread Pitch 14.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0090 0.23MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Grade IC08
