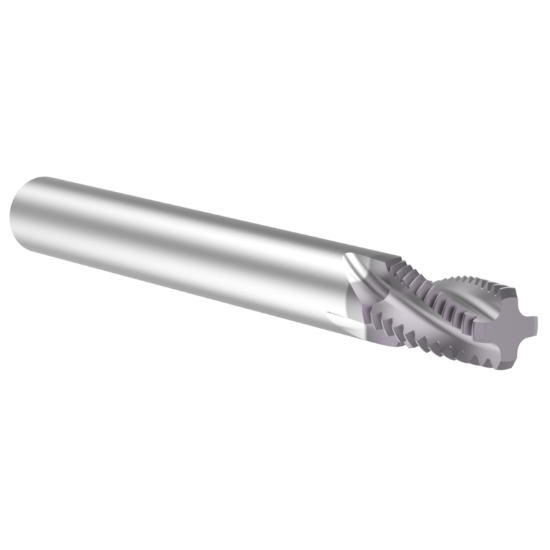

THREAD MILL USA TM19BSPT Carbide 1/4" x 19.00TPI BSPT 0.310 Cut Dia Cylindrical 0.3125 3.000 OAL TIALN

ISO: TM19BSPT

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRTM19BSPT
Delivery date: 3-5 days
$174.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Material # Material#8, Material#16, Material#20, Material#5, Material#15, Material#10
Coating TiAlN
Shipping State Georgia
Sold by Pieces 1
Additional Key Information 1 Mill Thread
Application Thread Milling
Uncategorized
Made In USA Yes
Dimensional Specifications
Thread Type BSPT
Cutter Dia 0.3100 7.87MM
Machine Side CYLINDRICAL0.3125
Thread Pitch 19.00TPI
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 3.0000 76.20MM
Thread Size 1/4"
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Helix Angle 28°
Length Of Cut 0.5800 14.73MM
Machine Side Connection Size 0.3120 7.92MM
Cutter Style Carbide Thread Mill
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
