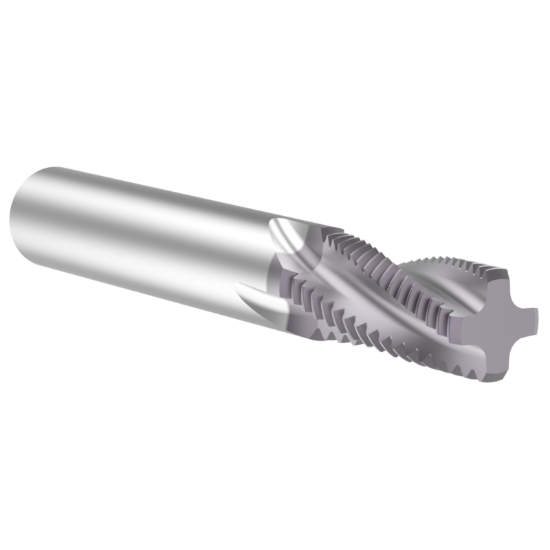

THREAD MILL USA TM14BSPP Carbide 1/2" x 14.00TPI BSPP 0.470 Cut Dia Cylindrical 0.5000 3.500 OAL TIALN

ISO: TM14BSPP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRTM14BSPP
Delivery date: 3-5 days
$236.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAlN
Material # Material#8, Material#15, Material#10, Material#5, Material#20, Material#16
Package Size 1
Additional Key Information 1 Mill Thread
Sold by Pieces 1
Application Thread Milling
Shipping State Georgia
Uncategorized
Made In USA Yes
Dimensional Specifications
Thread Size 1/2"
Machine Side CYLINDRICAL0.5000
Machine Side Connection Size 0.5000 12.70MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Thread Type BSPP
Cutter Style Carbide Thread Mill
Thread Pitch 14.00TPI
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Helix Angle 28°
Cutter Dia 0.4700 11.94MM
Overall Len 3.5000 88.90MM
Length Of Cut 1.1430 29.03MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
