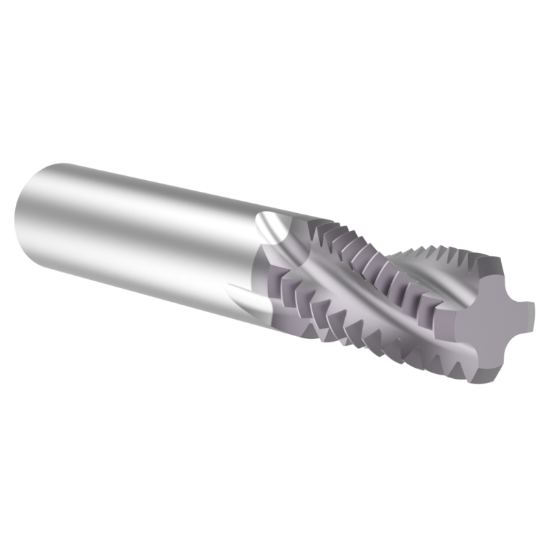

THREAD MILL USA TM10008 Carbide 1" x 8.00TPI UN 0.620 Cut Dia Cylindrical 0.6250 4.000 OAL TIALN

ISO: TM10008

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRTM10008
Delivery date: 3-5 days
$301.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#10, Material#8, Material#16, Material#20, Material#5, Material#15
Additional Key Information 1 Mill Thread
Coating TiAlN
Shipping State Georgia
Application Thread Milling
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side CYLINDRICAL0.6250
Machine Side Connection Size 0.6250 15.88MM
Cutter Dia 0.6200 15.75MM
Overall Len 4.0000 101.60MM
Thread Size 1"
Length Of Cut 1.3750 34.93MM
Cutter Style Carbide Thread Mill
Thread Pitch 8.00TPI
Thread Type UN
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Machine Side Connection Type Cylindrical
Helix Angle 28°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
