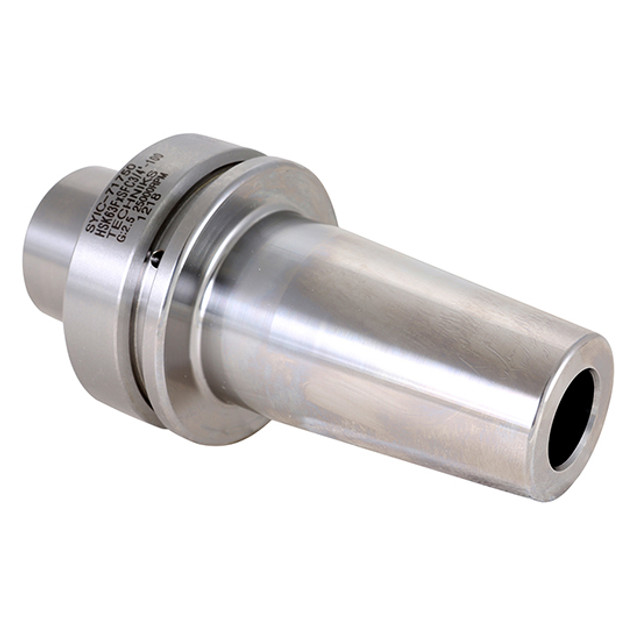

Picture of Techniks 71625 HSK63F Shrink Fit 0.6250 15.88mm - 5/8 3.7400 Gauge Length

Techniks 71625 HSK63F Shrink Fit 0.6250 15.88mm - 5/8 3.7400 Gauge Length

Part Number: TEC71625 ISO: HSK 63F x SF 5/8" x 3.74"

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1416668
Vendor: Sussex Tool and Supply
$284.00
Techniks T.I.R. Is 0.0001" Or Better. Balanced To 25,000 Rpm At G2.5. High Speed Or High Torque Machining. Lab Certified For Performance, Comes With Report. Tool Life Is Extended By As Much As 700%. Coolant-Thru Spindle W/ Set Screw Standard. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 63F
Overall Length 4.7200 119.89MM
Coolant Thru Thru Coolant
Tool Dia 2.4800 62.99MM
Type Of Tool Shrink Fit Chuck
Insert/Tool TOOL
Part Side Cylindrical0.6250
Output Type Cylindrical
Output 0.6250 15.88MM - 5/8
CNC Type Tool Shrink Fit
CNC Conection HSK63F
CNC Out Put CYLINDRICAL0.6250
Coolant Type Through
Gauge Length 3.7400
Max RPM 25000
Nose Dia/Nut Dia 1.060
Balanced To 000 RPM at G2.5, 25
