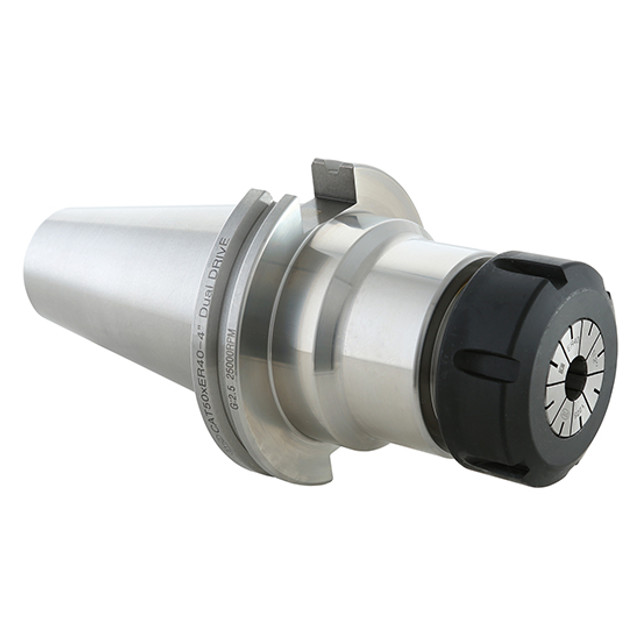

Picture of Techniks 47.122.32.800 CAT50 Collet Chuck ER32 8.0000 Gauge Length Dual Contact

Techniks 47.122.32.800 CAT50 Collet Chuck ER32 8.0000 Gauge Length Dual Contact

Part Number: TEC47.122.32.800 ISO: 47.122.32.800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420594
Vendor: Sussex Tool and Supply
$429.00
Techniks Dualdrive Are Compatible With Dual-Contact Spindles And Standard. Offers Improved Rigidity And T.I.R.. Balanced To 25,000 Rpm At G2.5 Tolerance. Each Holder Is Lab Certified And Has A Individual Report. Coolant Through Spindle Or Flange (Din B). Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 12.0000 304.80MM
Coolant Thru Thru Coolant
Tool Dia 3.8750 98.42MM - 3-7/8
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER32
Output Type ER
Output 32
CNC Type Tool Collet Chuck
CNC Conection CAT50
CNC Out Put ER32
Coolant Type Through Spindle
Gauge Length 8.0000
Max RPM 25000
Nose Dia/Nut Dia 1.970
Balanced To 000 RPM at G2.5, 25
Dual Contact Big+ Dual Contact
