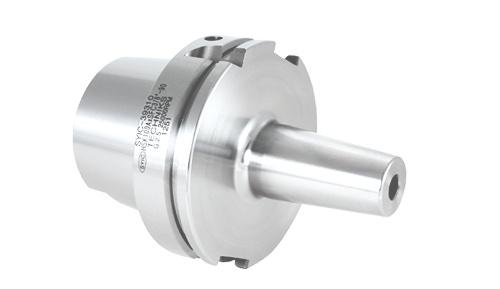

Picture of Techniks 39324B HSK100A Shrink Fit Jet1.0000 25.40mm 4.5300 Gauge Length

Techniks 39324B HSK100A Shrink Fit Jet1.0000 25.40mm 4.5300 Gauge Length

Part Number: TEC39324B ISO: HSK 100A x SF 1" - 4.53" with CoolBLAST

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1416570
Vendor: Sussex Tool and Supply
$438.00
Techniks Coolblast Sprays Coolant Through Coolant Ports. T.I.R. Is 0.0001". Balanced To 25,000 Rpm At G2.5 Tolerance. High Speed/High Torque Machining. Techniks Certified For Accuracy And Balance. Individual Lab Report. Tool Life Is Extended By As Much As 700%. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 100A
Overall Length 6.5000 165.10MM
Coolant Thru Thru Coolant
Tool Dia 3.9400 100.00MM
Type Of Tool Shrink Fit Chuck
Insert/Tool TOOL
Part Side Cylindrical1.0000
Output Type Cylindrical
Output 1.0000 25.40MM
CNC Type Tool Shrink Fit
CNC Conection HSK100A
CNC Out Put CYLINDRICAL1.0000
Coolant Type Through
Gauge Length 4.5300
Max RPM 25000
Nose Dia/Nut Dia 1.810
Balanced To 000 RPM at G2.5, 25
Jet Type Coolant Jet
