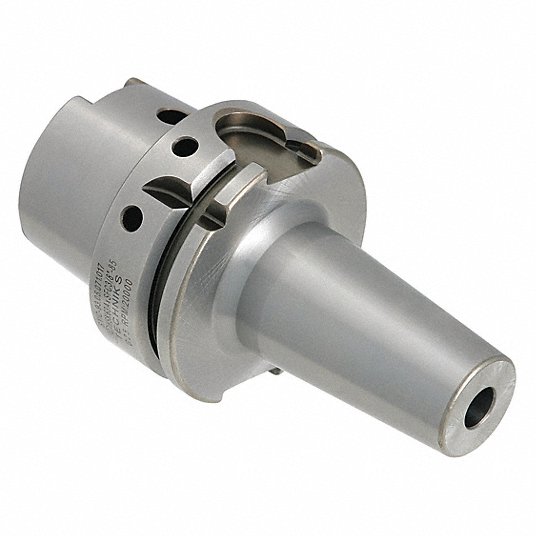

Picture of Techniks 39146-120-F HSK63F Shrink Fit 0.6299 16.00mm 4.7200 Gauge Length

Techniks 39146-120-F HSK63F Shrink Fit 0.6299 16.00mm 4.7200 Gauge Length

Part Number: TEC39146-120-F ISO: HSK 63F x SF 16mm - 120mm

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1416659
Vendor: Sussex Tool and Supply
$304.00
Techniks T.I.R. Is 0.0001" Or Better. Balanced To 25,000 Rpm At G2.5. High Speed Or High Torque Machining. Lab Certified For Performance, Comes With Report. Tool Life Is Extended By As Much As 700%. Coolant-Thru Spindle W/ Set Screw Standard. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 63F
Overall Length 5.7100 145.03MM
Coolant Thru Thru Coolant
Tool Dia 2.4800 62.99MM
Type Of Tool Shrink Fit Chuck
Insert/Tool TOOL
Part Side Cylindrical0.6299
Output Type Cylindrical
Output 0.6299 16.00MM
CNC Type Tool Shrink Fit
CNC Conection HSK63F
CNC Out Put CYLINDRICAL0.6299
Coolant Type Through
Gauge Length 4.7200
Max RPM 25000
Nose Dia/Nut Dia 1.060
Balanced To 000 RPM at G2.5, 25
