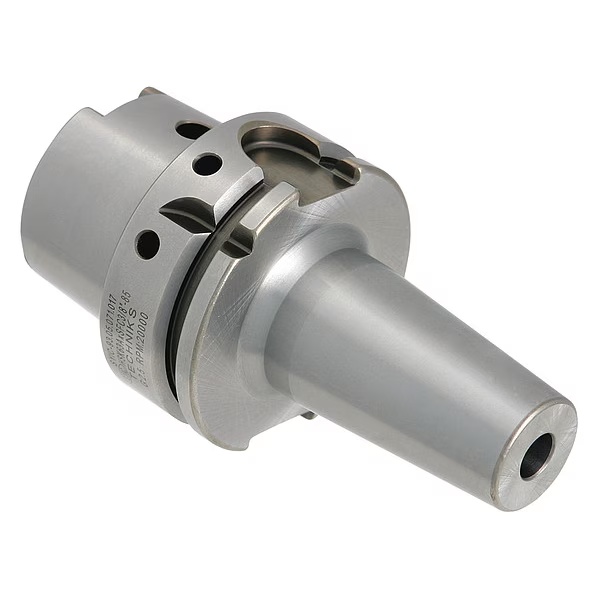

Picture of Techniks 39026 HSK50A Shrink Fit 0.7500 19.05 - 3/4 3.9400 Gauge Length

Techniks 39026 HSK50A Shrink Fit 0.7500 19.05 - 3/4 3.9400 Gauge Length

Part Number: TEC39026 ISO: HSK 50A x SF 3/4 - 3.94"

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1416591
Vendor: Sussex Tool and Supply
$304.00
Techniks T.I.R. Is 0.0001" Or Better. Balanced To 25,000 Rpm At G2.5. High Speed Or High Torque Machining. Lab Certified For Performance, Comes With Report. Tool Life Is Extended By As Much As 700%. Coolant-Thru Spindle W/ Set Screw Standard. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 50A
Overall Length 4.9213 125.00MM
Coolant Thru Thru Coolant
Tool Dia 1.9700 50.03MM
Type Of Tool Shrink Fit Chuck
Insert/Tool TOOL
Part Side Cylindrical0.7500
Output Type Cylindrical
Output 0.7500 19.05 - 3/4
CNC Type Tool Shrink Fit
CNC Conection HSK50A
CNC Out Put CYLINDRICAL0.7500
Coolant Type Through
Gauge Length 3.9400
Max RPM 25000
Nose Dia/Nut Dia 1.300
Balanced To 000 RPM at G2.5, 25
