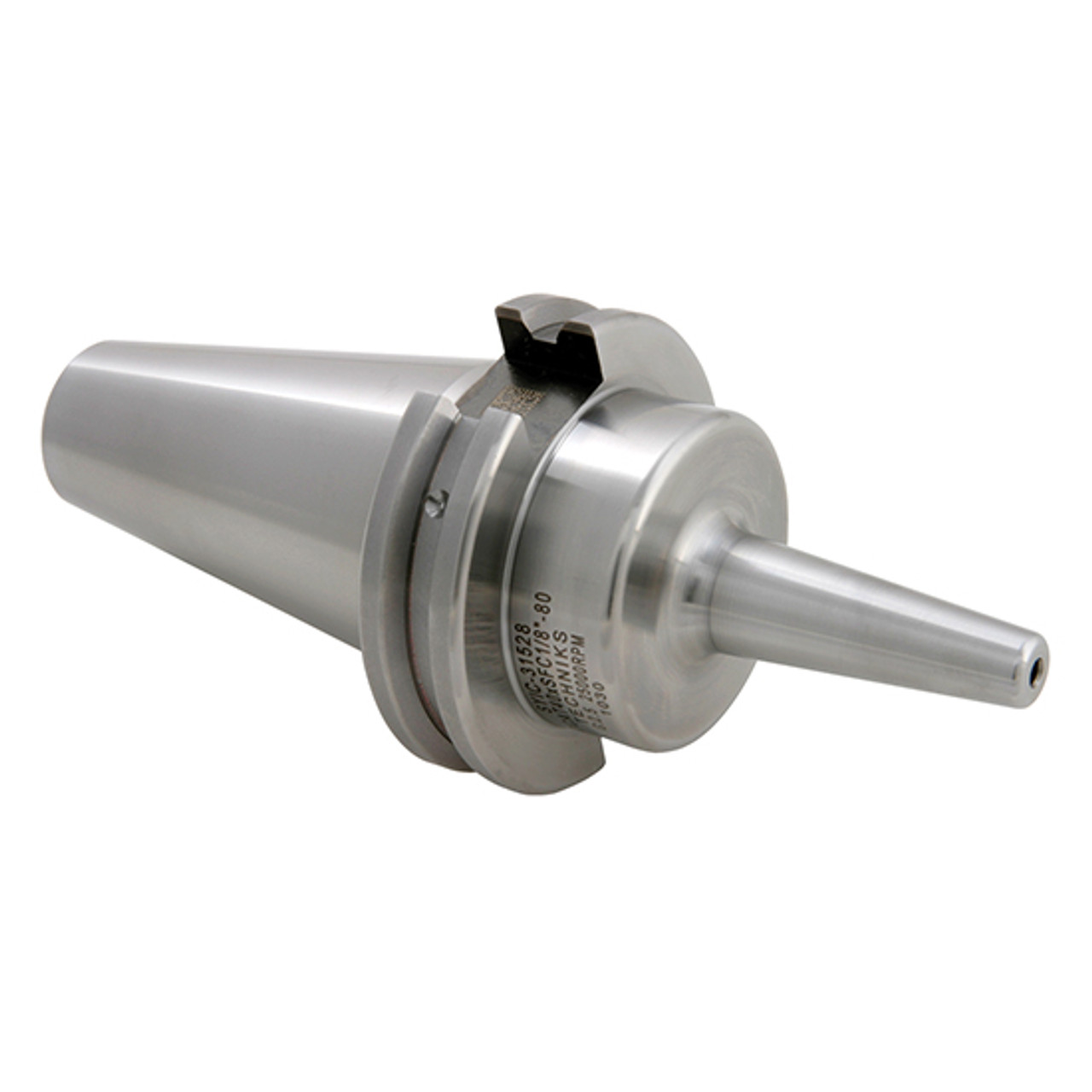

Picture of Techniks 31568 CAT40 Shrink Fit 0.3750 9.53mm - 3/8 3.1500 Gauge Length

Techniks 31568 CAT40 Shrink Fit 0.3750 9.53mm - 3/8 3.1500 Gauge Length

Part Number: TEC31568 ISO: 31568

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420343
Vendor: Sussex Tool and Supply
$284.00
Techniks Small Nose For Finish Passes On High Speed/Torque Machining. T.I.R. Is 0.0001". Balanced To 25,000 Rpm At G2.5. Techniks Certified For Accuracy And Balance. Individual Lab Report. Tool Life Improved As Much As 700%. Coolant-Thru Standard. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 5.8400 148.34MM
Coolant Thru Thru Coolant
Tool Dia 0.9400 23.88MM
Type Of Tool Shrink Fit Chuck
Insert/Tool TOOL
Part Side Cylindrical0.3750
Output Type Cylindrical
Output 0.3750 9.53MM - 3/8
CNC Type Tool Shrink Fit
CNC Conection CAT40
CNC Out Put CYLINDRICAL0.3750
Coolant Type Through Spindle
Gauge Length 3.1500
Max RPM 25000
Nose Dia/Nut Dia 0.630
Balanced To 25, 0000 RPM at G2.5
