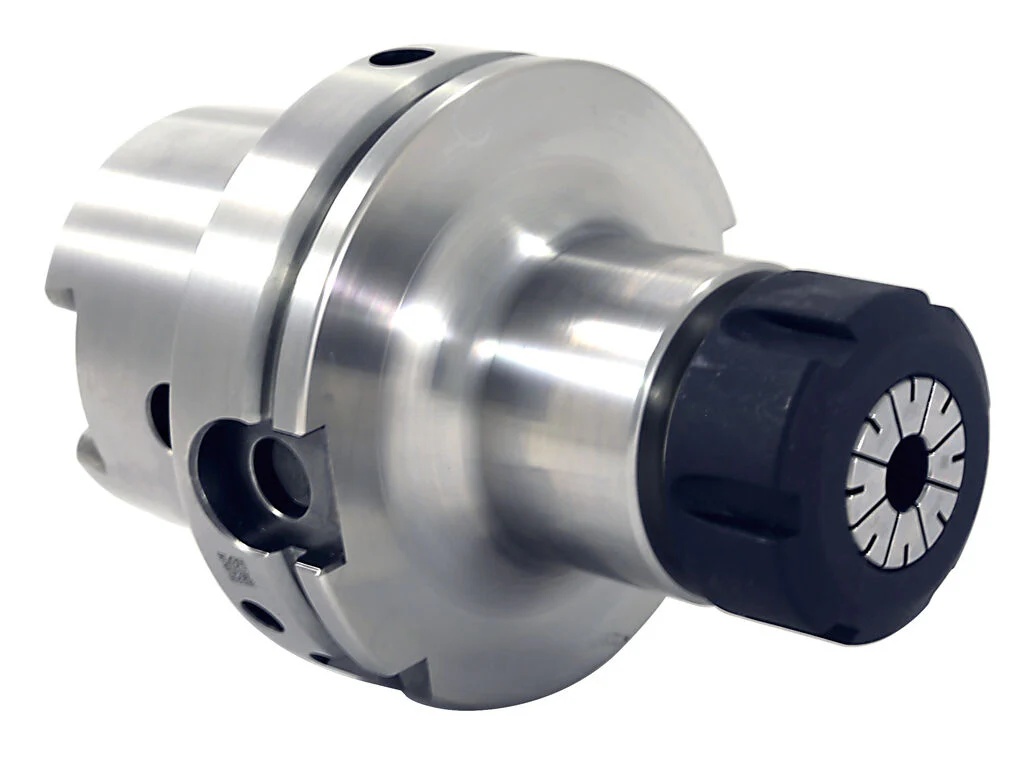

Picture of Techniks 31506 HSK100A Collet Chuck ER40 4.7200 Gauge Length

Techniks 31506 HSK100A Collet Chuck ER40 4.7200 Gauge Length

Part Number: TEC31506 ISO: 31506

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420339
Vendor: Sussex Tool and Supply
$568.00
Techniks Techniks Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Lab Tested For Accuracy And Balance And Come With Their Own Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 100A
Overall Length 6.6900 169.93MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER40
Output Type ER
Output 40
CNC Type Tool Collet Chuck
CNC Conection HSK100A
CNC Out Put ER40
Coolant Type Through Spindle
Gauge Length 4.7200
Max RPM 25000
Balanced To 000 RPM at G2.5, 25
