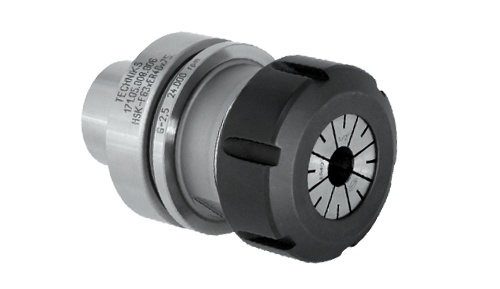

Picture of Techniks 31431-F HSK63F Collet Chuck ER16 2.3600 Gauge Length

Techniks 31431-F HSK63F Collet Chuck ER16 2.3600 Gauge Length

Part Number: TEC31431-F ISO: 31431-F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420312
Vendor: Sussex Tool and Supply
$459.00
Techniks Techniks Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Lab Tested For Accuracy And Balance And Come With Their Own Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 63A
Overall Length 3.3400 84.84MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER16
Output Type ER
Output 16
CNC Type Tool Collet Chuck
CNC Conection HSK63A
CNC Out Put ER16
Coolant Type Through Spindle
Gauge Length 2.3600
Max RPM 25000
Balanced To 000 RPM at G2.5, 25
