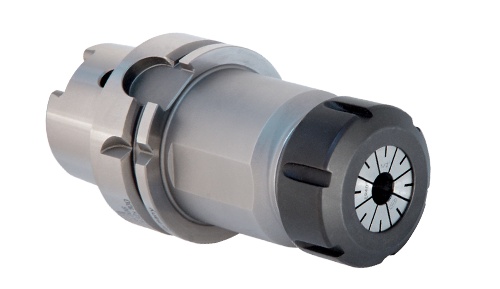

Picture of Techniks 31420 HSK50A Collet Chuck ER32 3.9400 Gauge Length

Techniks 31420 HSK50A Collet Chuck ER32 3.9400 Gauge Length

Part Number: TEC31420 ISO: 31420

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420310
Vendor: Sussex Tool and Supply
$392.00
Techniks Techniks Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Lab Tested For Accuracy And Balance And Come With Their Own Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 50A
Overall Length 4.9200 124.97MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER32
Output Type ER
Output 32
CNC Type Tool Collet Chuck
CNC Conection HSK50A
CNC Out Put ER32
Coolant Type Through Spindle
Gauge Length 3.9400
Max RPM 25000
Balanced To 000 RPM at G2.5, 25
