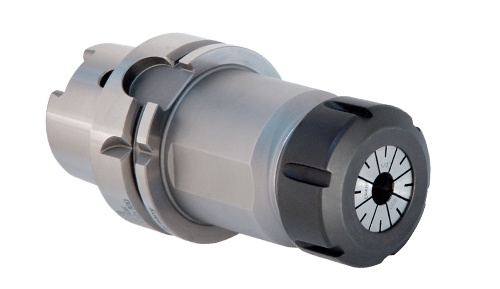

Picture of Techniks 31384 HSK40A Collet Chuck ER25 3.1500 Gauge Length

Techniks 31384 HSK40A Collet Chuck ER25 3.1500 Gauge Length

Part Number: TEC31384 ISO: 31384

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420301
Vendor: Sussex Tool and Supply
$459.00
Techniks Techniks Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Lab Tested For Accuracy And Balance And Come With Their Own Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type HSK
Mach Side Connection Size 40A
Overall Length 3.9400 100.07MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER25
Output Type ER
Output 25
CNC Type Tool Collet Chuck
CNC Conection HSK40A
CNC Out Put ER25
Coolant Type Through Spindle
Gauge Length 3.1500
Max RPM 25000
Balanced To 000 RPM at G2.5, 25
