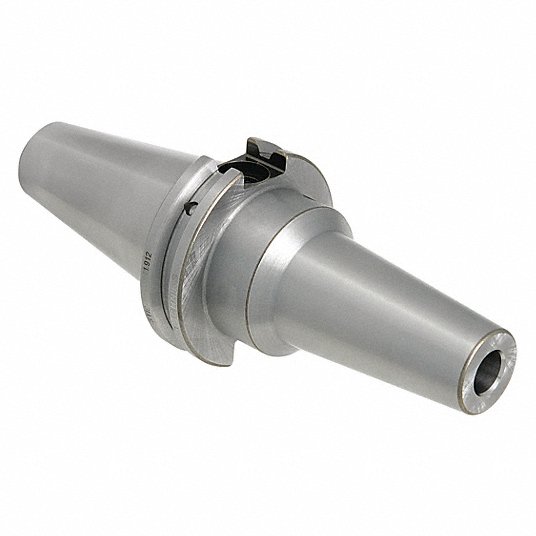

Picture of Techniks 29204FB CAT40 Shrink Fit Jet0.1575 4.00mm 3.9400 Gauge Length

Techniks 29204FB CAT40 Shrink Fit Jet0.1575 4.00mm 3.9400 Gauge Length

Part Number: TEC29204FB ISO: 29204FB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420211
Vendor: Sussex Tool and Supply
$361.00
Techniks T.I.R. Is 0.0001" Or Better. Balanced To 25,000 Rpm At G2.5. High Speed Or High Torque Machining. Lab Certified For Performance, Comes With Report. Tool Life Is Extended By As Much As 700%. Coolant-Thru Spindle W/ Set Screw Standard. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 6.6300 168.40MM
Coolant Thru Thru Coolant
Tool Dia 0.7360 18.69MM
Type Of Tool Shrink Fit Chuck
Insert/Tool TOOL
Part Side Cylindrical0.1575
Output Type Cylindrical
Output 0.1575 4.00MM
CNC Type Tool Shrink Fit
CNC Conection CAT40
CNC Out Put CYLINDRICAL0.1575
Coolant Type Through Spindle
Gauge Length 3.9400
Max RPM 25000
Nose Dia/Nut Dia 0.394
Balanced To 25, 0000 RPM at G2.5
Jet Type Coolant Jet
Flange Coolant DIN A/B
