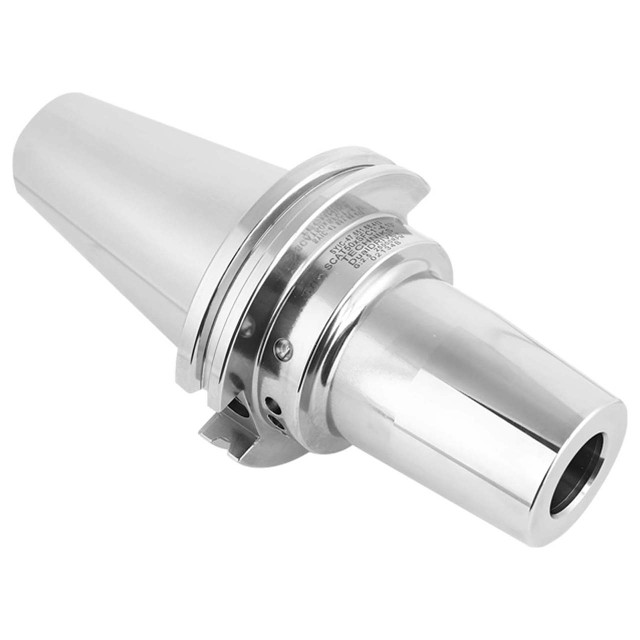

Picture of Techniks 29064FB CAT50 Shrink Fit Jet0.7500 19.05 - 3/4 4.1300 Gauge Length

Techniks 29064FB CAT50 Shrink Fit Jet0.7500 19.05 - 3/4 4.1300 Gauge Length

Part Number: TEC29064FB ISO: 29064FB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420192
Vendor: Sussex Tool and Supply
$387.00
Techniks Coolflex/Blast Offers Coolant-Thru The Spindle, Flange And In-The-Bore. T.I.R. Of 0.0001". Balanced To 25,000 Rpm At G2.5. High Speed/Torque Machining. Certified For Accuracy And Balance, Individual Lab Report. Tool Life Improved As Much As 700%. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 8.1300 206.50MM
Coolant Thru Thru Coolant
Tool Dia 1.6500 41.91MM
Type Of Tool Shrink Fit Chuck
Insert/Tool TOOL
Part Side Cylindrical0.7500
Output Type Cylindrical
Output 0.7500 19.05 - 3/4
CNC Type Tool Shrink Fit
CNC Conection CAT50
CNC Out Put CYLINDRICAL0.7500
Coolant Type Through Spindle
Gauge Length 4.1300
Max RPM 25000
Nose Dia/Nut Dia 1.420
Balanced To 25, 0000 RPM at G2.5
Jet Type Coolant Jet
Flange Coolant DIN A/B
