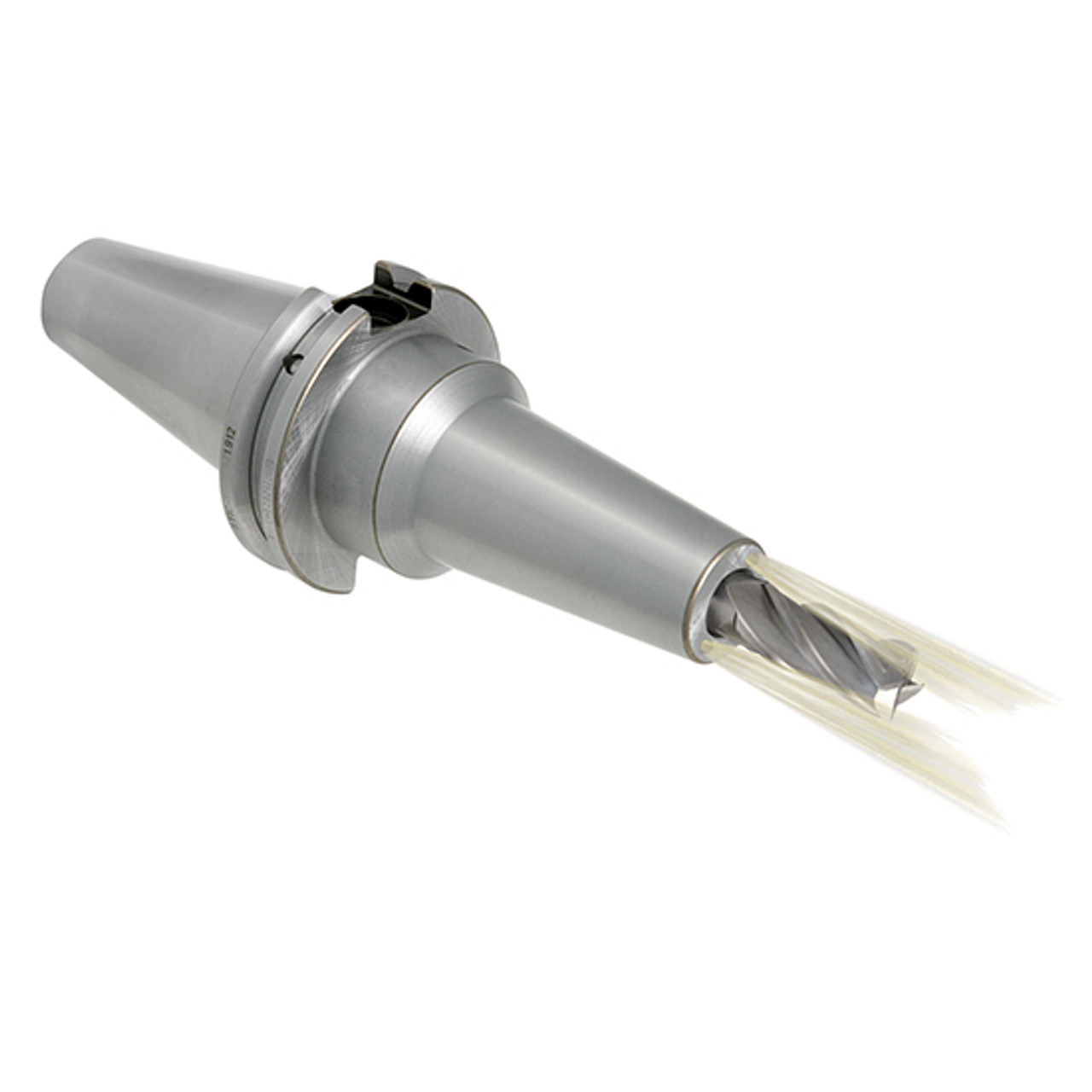

Picture of Techniks 29064B CAT50 Shrink Fit Jet0.7500 19.05 - 3/4 4.1300 Gauge Length

Techniks 29064B CAT50 Shrink Fit Jet0.7500 19.05 - 3/4 4.1300 Gauge Length

Part Number: TEC29064B ISO: 29064B
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1420191
Vendor: Sussex Tool and Supply
$398.74

Description

Techniks Coolblast Sprays Coolant Thru-The-Bore. T.I.R. Is 0.0001". Balanced To 25,000 Rpm At G2.5 Tolerance. High Speed/High Torque Machining. Techniks Certified For Accuracy And Balance. Individual Lab Report. Tool Life Is Extended By As Much As 700%. Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Shrink Fit Chuck
Output Type Cylindrical
CNC Type Tool Shrink Fit
Coolant Type Through Spindle
Jet Type Coolant Jet
Dimensions & Sizing
Overall Length 8.1300 206.50MM
Tool Dia 1.6500 41.91MM
Gauge Length 4.1300
Nose Dia/Nut Dia 1.420
Performance & Capacity
Output 0.7500 19.05 - 3/4
Max RPM 25000
Balanced To 25, 0000 RPM at G2.5
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection CAT50
