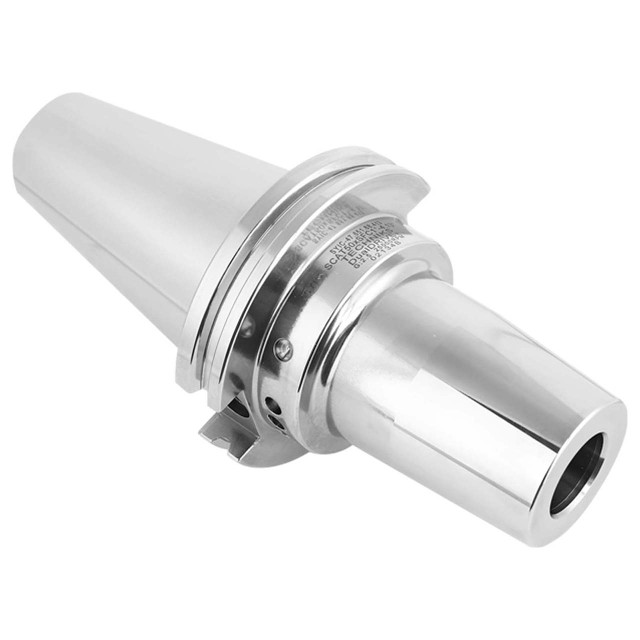

Picture of Techniks 29060FB CAT50 Shrink Fit Jet0.5000 12.70mm - 1/2 3.9400 Gauge Length

Techniks 29060FB CAT50 Shrink Fit Jet0.5000 12.70mm - 1/2 3.9400 Gauge Length

Part Number: TEC29060FB ISO: 29060FB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420183
Vendor: Sussex Tool and Supply
$407.00
Techniks Coolflex/Blast Offers Coolant-Thru The Spindle, Flange And In-The-Bore. T.I.R. Of 0.0001". Balanced To 25,000 Rpm At G2.5. High Speed/Torque Machining. Certified For Accuracy And Balance, Individual Lab Report. Tool Life Improved As Much As 700%. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 7.9400 201.67MM
Coolant Thru Thru Coolant
Tool Dia 1.3400 34.03MM
Type Of Tool Shrink Fit Chuck
Insert/Tool TOOL
Part Side Cylindrical0.5000
Output Type Cylindrical
Output 0.5000 12.70MM - 1/2
CNC Type Tool Shrink Fit
CNC Conection CAT50
CNC Out Put CYLINDRICAL0.5000
Coolant Type Through Spindle
Gauge Length 3.9400
Max RPM 25000
Nose Dia/Nut Dia 1.100
Balanced To 25, 0000 RPM at G2.5
Jet Type Coolant Jet
Flange Coolant DIN A/B
