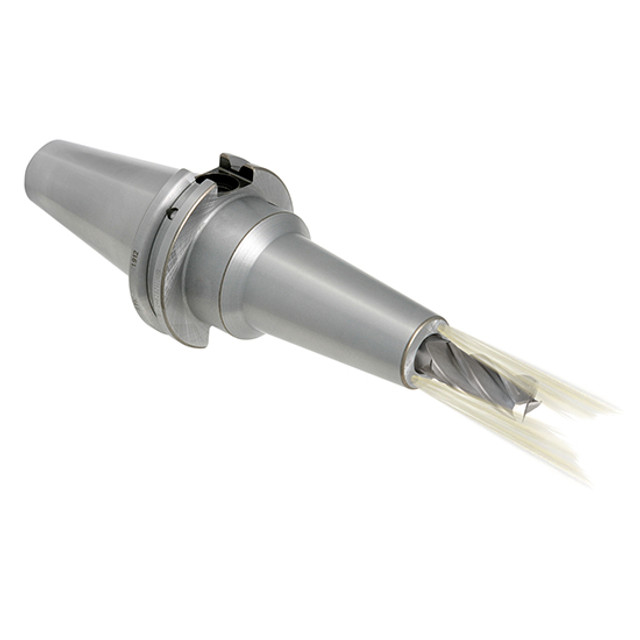

Picture of Techniks 29054B CAT50 Shrink Fit Jet0.2500 6.35mm - 1/4 3.5400 Gauge Length

Techniks 29054B CAT50 Shrink Fit Jet0.2500 6.35mm - 1/4 3.5400 Gauge Length

Part Number: TEC29054B ISO: 29054B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420166
Vendor: Sussex Tool and Supply
$387.00
Techniks Coolblast Sprays Coolant Thru-The-Bore. T.I.R. Is 0.0001". Balanced To 25,000 Rpm At G2.5 Tolerance. High Speed/High Torque Machining. Techniks Certified For Accuracy And Balance. Individual Lab Report. Tool Life Is Extended By As Much As 700%. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 7.5400 191.51MM
Coolant Thru Thru Coolant
Tool Dia 1.0600 26.92MM
Type Of Tool Shrink Fit Chuck
Insert/Tool TOOL
Part Side Cylindrical0.2500
Output Type Cylindrical
Output 0.2500 6.35MM - 1/4
CNC Type Tool Shrink Fit
CNC Conection CAT50
CNC Out Put CYLINDRICAL0.2500
Coolant Type Through Spindle
Gauge Length 3.5400
Max RPM 25000
Nose Dia/Nut Dia 0.710
Balanced To 25, 0000 RPM at G2.5
Jet Type Coolant Jet
