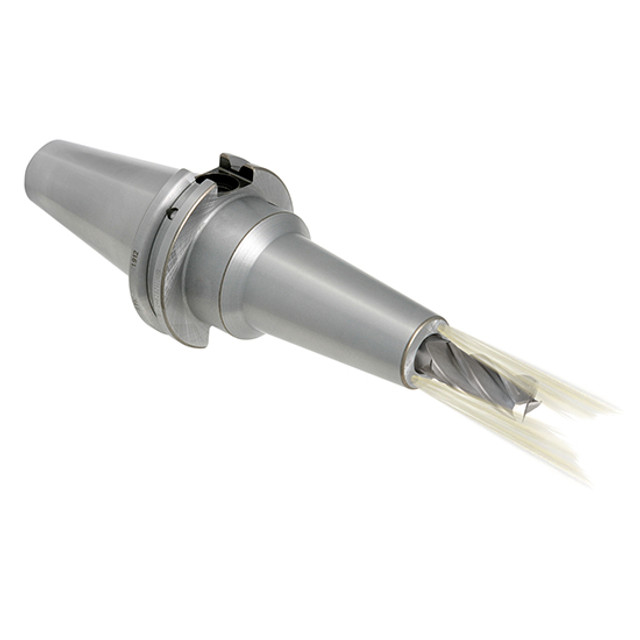

Picture of Techniks 29033B CAT40 Shrink Fit Jet0.6250 15.88mm - 5/8 5.0000 Gauge Length

Techniks 29033B CAT40 Shrink Fit Jet0.6250 15.88mm - 5/8 5.0000 Gauge Length

Part Number: TEC29033B ISO: 29033B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420142
Vendor: Sussex Tool and Supply
$346.00
Techniks Coolblast Sprays Coolant Thru-The-Bore. T.I.R. Is 0.0001". Balanced To 25,000 Rpm At G2.5 Tolerance. High Speed/High Torque Machining. Techniks Certified For Accuracy And Balance. Individual Lab Report. Tool Life Is Extended By As Much As 700%. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 7.7000 195.58MM
Coolant Thru Thru Coolant
Tool Dia 1.3400 34.03MM
Type Of Tool Shrink Fit Chuck
Insert/Tool TOOL
Part Side Cylindrical0.6250
Output Type Cylindrical
Output 0.6250 15.88MM - 5/8
CNC Type Tool Shrink Fit
CNC Conection CAT40
CNC Out Put CYLINDRICAL0.6250
Coolant Type Through Spindle
Gauge Length 5.0000
Max RPM 25000
Nose Dia/Nut Dia 1.260
Balanced To 25, 0000 RPM at G2.5
Jet Type Coolant Jet
