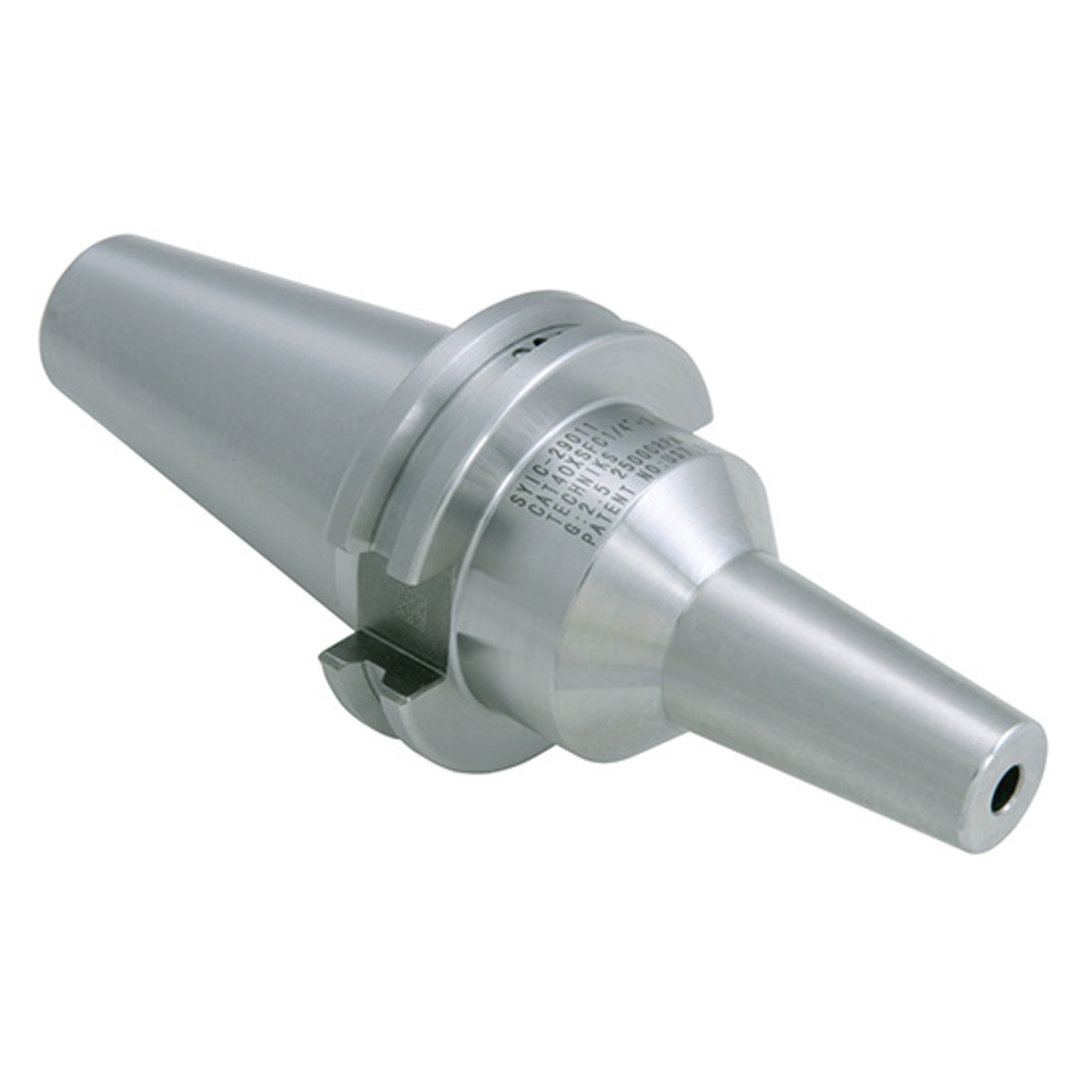

Picture of Techniks 29020B CAT40 Shrink Fit Jet0.3750 9.53mm - 3/8 3.0000 Gauge Length

Techniks 29020B CAT40 Shrink Fit Jet0.3750 9.53mm - 3/8 3.0000 Gauge Length

Part Number: TEC29020B ISO: 29020B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420122
Vendor: Sussex Tool and Supply
$315.00
Techniks Coolblast Sprays Coolant Thru-The-Bore. T.I.R. Is 0.0001". Balanced To 25,000 Rpm At G2.5 Tolerance. High Speed/High Torque Machining. Techniks Certified For Accuracy And Balance. Individual Lab Report. Tool Life Is Extended By As Much As 700%. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 5.6900 144.53MM
Coolant Thru Thru Coolant
Tool Dia 1.2600 32.00MM
Type Of Tool Shrink Fit Chuck
Insert/Tool TOOL
Part Side Cylindrical0.3750
Output Type Cylindrical
Output 0.3750 9.53MM - 3/8
CNC Type Tool Shrink Fit
CNC Conection CAT40
CNC Out Put CYLINDRICAL0.3750
Coolant Type Through Spindle
Gauge Length 3.0000
Max RPM 25000
Nose Dia/Nut Dia 0.940
Balanced To 25, 0000 RPM at G2.5
Jet Type Coolant Jet
