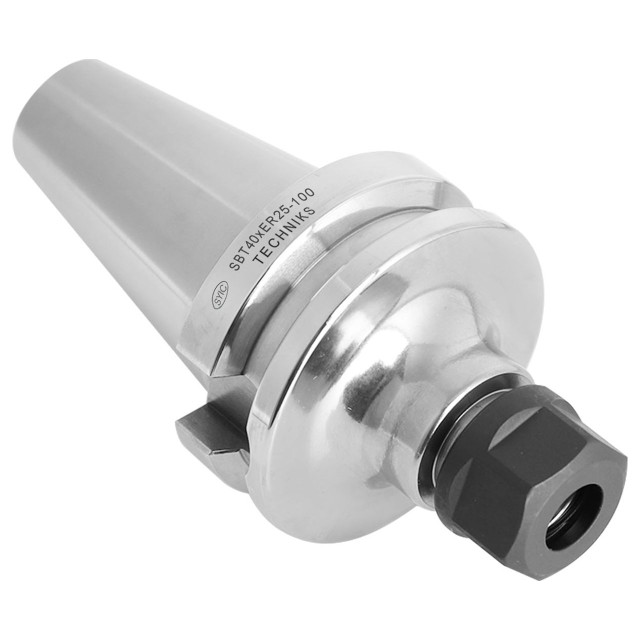

Picture of Techniks 28.122.25.100 BT40 Collet Chuck ER25 3.9400 Gauge Length Dual Contact

Techniks 28.122.25.100 BT40 Collet Chuck ER25 3.9400 Gauge Length Dual Contact

Part Number: TEC28.122.25.100 ISO: 28.122.25.100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420094
Vendor: Sussex Tool and Supply
$273.00
Techniks Dualdrive Are Compatible With Dual-Contact Spindles And Standard. Offers Improved Rigidity And T.I.R.. Balanced To 25,000 Rpm At G2.5 Tolerance. Each Holder Is Lab Certified And Has A Individual Report. Coolant Through Spindle Or Flange (Din B). Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 40
Overall Length 5.8400 148.34MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER25
Output Type ER
Output 25
CNC Type Tool Collet Chuck
CNC Conection BT40
CNC Out Put ER25
Coolant Type Optional Through Tool
Gauge Length 3.9400
Max RPM 25000
Nose Dia/Nut Dia 1.650
Balanced To 000 RPM at G2.5, 25
Dual Contact Big+ Dual Contact
