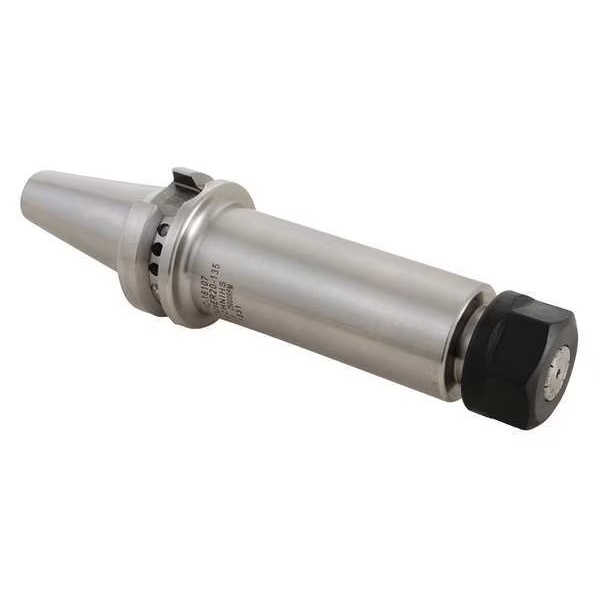

Picture of Techniks 25.122.16.060-SlotNut BT30 Collet Chuck ER16 2.3600 Gauge Length Dual Contact

Techniks 25.122.16.060-SlotNut BT30 Collet Chuck ER16 2.3600 Gauge Length Dual Contact

Part Number: TEC25.122.16.060-SLOTNUT ISO: 25.122.16.060-SLOTNUT

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1420010
Vendor: Sussex Tool and Supply
$366.00
Techniks Dualdrive Are Compatible With Dual-Contact Spindles And Standard. Offers Improved Rigidity And T.I.R.. Balanced To 25,000 Rpm At G2.5 Tolerance. Each Holder Is Lab Certified And Has A Individual Report. Coolant Through Spindle Or Flange (Din B). Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 30
Overall Length 4.2600 108.20MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER16
Output Type ER
Output 16
CNC Type Tool Collet Chuck
CNC Conection BT30
CNC Out Put ER16
Coolant Type Optional Through Tool
Gauge Length 2.3600
Max RPM 25000
Nose Dia/Nut Dia 1.260
Balanced To 000 RPM at G2.5, 25
Dual Contact Big+ Dual Contact
