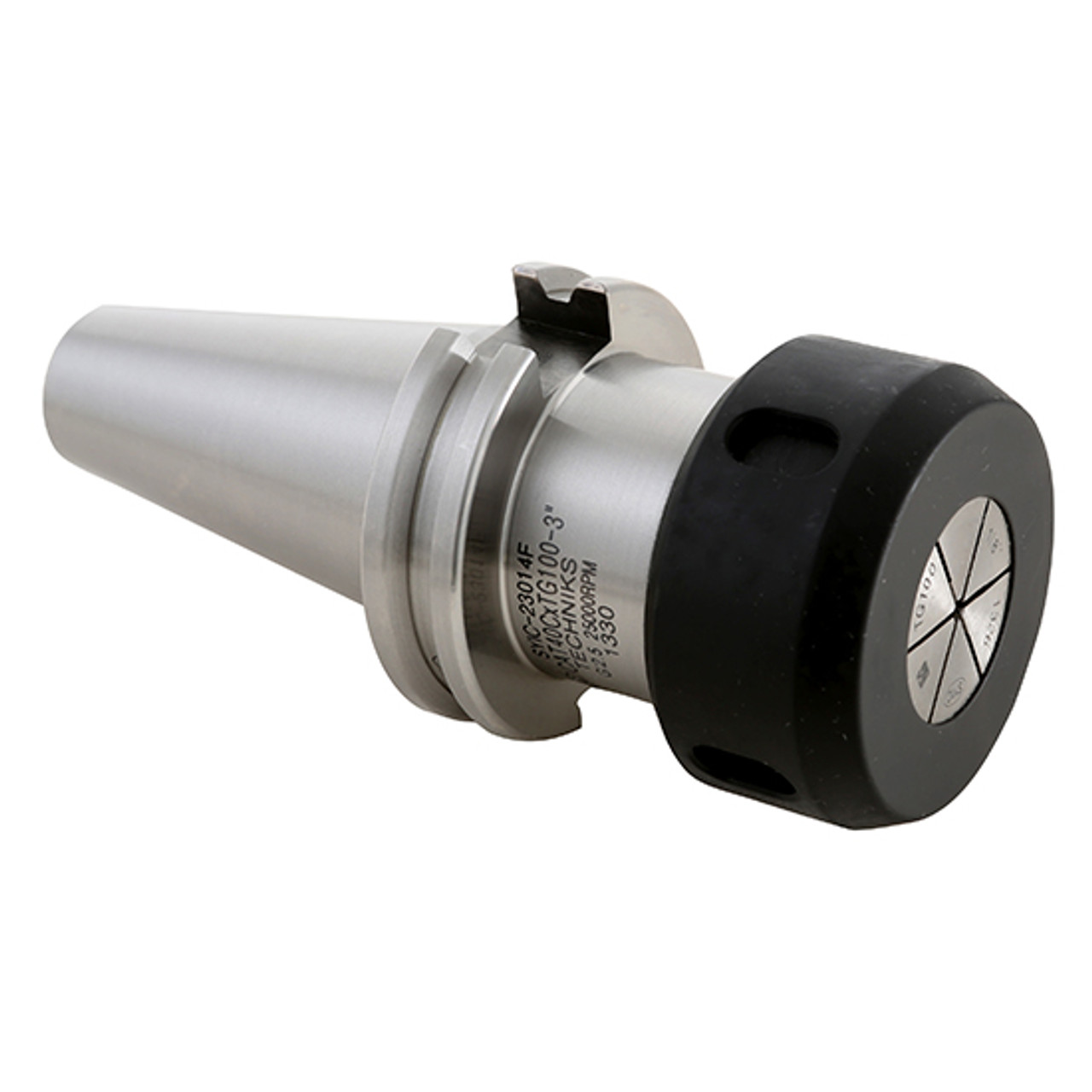

Picture of Techniks 23032 CAT50 Collet Chuck G 100 4.0000 Gauge Length

Techniks 23032 CAT50 Collet Chuck G 100 4.0000 Gauge Length

Part Number: TEC23032 ISO: 23032

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419975
Vendor: Sussex Tool and Supply
$236.00
Techniks Techniks Chucks Are Balanced To 25,000 Rpm At G2.5 Tolerance. Lab Tested For Accuracy And Balance And Come With Their Own Performance Report. Techniks Holders Achieve 0.0001" Or Less T.I.R. As Measured From The Taper To The Collet Pocket. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 8.0100 203.45MM
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side TG100
Output Type TG
Output 100
CNC Type Tool Collet Chuck
CNC Conection CAT50
CNC Out Put TG100
Coolant Type Through Spindle
Gauge Length 4.0000
Max RPM 25000
Nose Dia/Nut Dia 2.362
Balanced To 000 RPM at G2.5, 25
