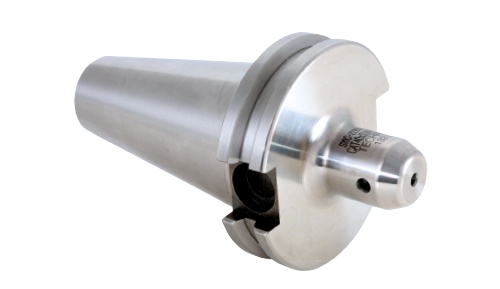

Picture of Techniks 22997-100 CAT50 End Mill 1.5748 40.00mm 3.9400 Gauge Length

Techniks 22997-100 CAT50 End Mill 1.5748 40.00mm 3.9400 Gauge Length

Part Number: TEC22997-100 ISO: 22997-100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419964
Vendor: Sussex Tool and Supply
$420.00
Techniks Techniks End Mill Holders Are Machined To H5 Standard I.D. Hole Tolerance. Balanced To 15,000 Rpm At G6.3 Tolerance To Save Spindle Bearing Life. Taper Is Ground To At3 Standard. Lab Certified With An Individualized Performance Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 7.9400 201.67MM
Coolant Thru Thru Coolant
Tool Dia 3.8750 98.42MM - 3-7/8
Type Of Tool End Mill Holder
Insert/Tool TOOL
Part Side WELDON1.5748
Output Type Weldon
Output 1.5748 40.00MM
CNC Type Tool End Mill
CNC Conection CAT50
CNC Out Put WELDON1.5748
Gauge Length 3.9400
Max RPM 15000
Nose Dia/Nut Dia 3.540
Balanced To 000 RPM at G6.3, 15
