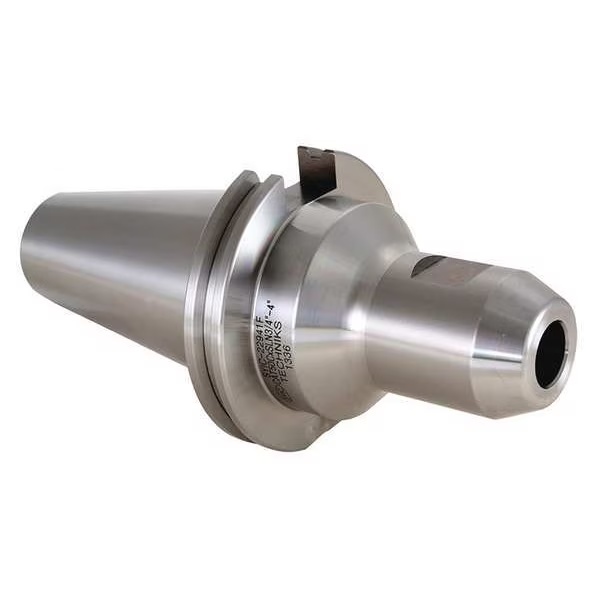

Picture of Techniks 22949F CAT50 End Mill 1.5000 38.10mm - 1-1/2 4.6000 Gauge Length

Techniks 22949F CAT50 End Mill 1.5000 38.10mm - 1-1/2 4.6000 Gauge Length

Part Number: TEC22949F ISO: 22949F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419941
Vendor: Sussex Tool and Supply
$215.00
Techniks Techniks Coolflex End Mill Holders Offer Coolant Capability Either Through Spindle Or The Flange(Din B). Techniks End Mills Offer An Industry Leading H5 Bore Tolerance To Increase Tool Life And Are Individually Tested In A Lab To Ensure Quality. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 8.6000 218.44MM
Coolant Thru Thru Coolant
Tool Dia 3.8750 98.42MM - 3-7/8
Type Of Tool End Mill Holder
Insert/Tool TOOL
Part Side WELDON1.5000
Output Type Weldon
Output 1.5000 38.10MM - 1-1/2
CNC Type Tool End Mill
CNC Conection CAT50
CNC Out Put WELDON1.5000
Gauge Length 4.6000
Max RPM 15000
Nose Dia/Nut Dia 2.500
Balanced To 000 RPM at G6.3, 15
Flange Coolant DIN A/B
