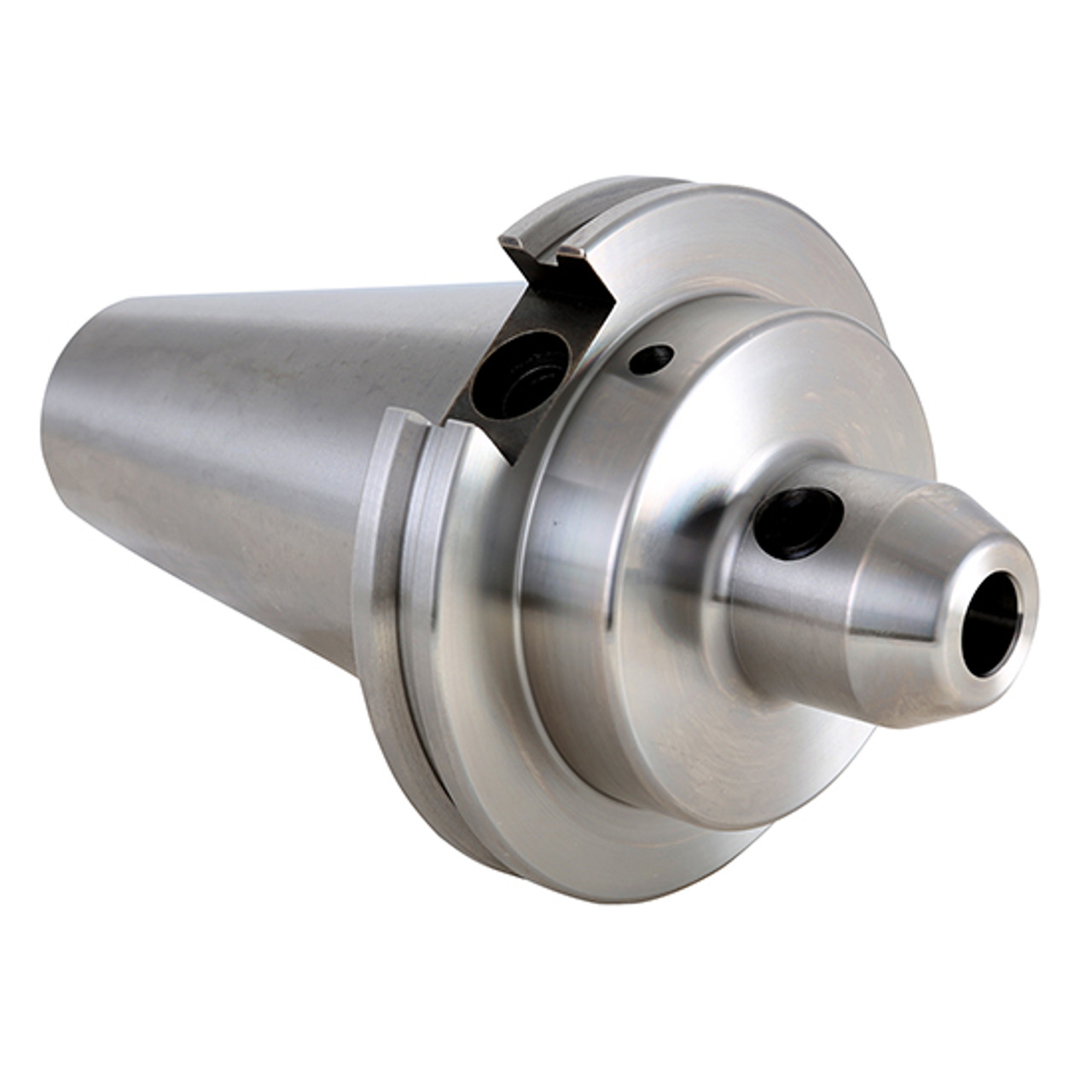

Picture of Techniks 22947 CAT50 End Mill 1.2500 31.75mm - 1-1/4 4.6000 Gauge Length

Techniks 22947 CAT50 End Mill 1.2500 31.75mm - 1-1/4 4.6000 Gauge Length

Part Number: TEC22947 ISO: 22947

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419926
Vendor: Sussex Tool and Supply
$171.00
Techniks Techniks End Mill Holders Are Machined To H5 Standard I.D. Hole Tolerance. Balanced To 15,000 Rpm At G6.3 Tolerance To Save Spindle Bearing Life. Taper Is Ground To At3 Standard. Lab Certified With An Individualized Performance Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 8.6000 218.44MM
Coolant Thru Thru Coolant
Tool Dia 3.8750 98.42MM - 3-7/8
Type Of Tool End Mill Holder
Insert/Tool TOOL
Part Side WELDON1.2500
Output Type Weldon
Output 1.2500 31.75MM - 1-1/4
CNC Type Tool End Mill
CNC Conection CAT50
CNC Out Put WELDON1.2500
Gauge Length 4.6000
Max RPM 15000
Nose Dia/Nut Dia 2.500
Balanced To 000 RPM at G6.3, 15
