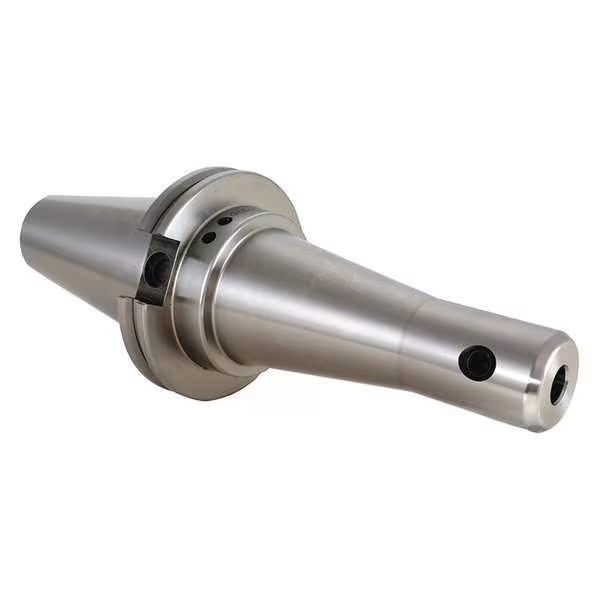

Picture of Techniks 22945-8-RR CAT50 End Mill 1.0000 25.40mm 8.0000 Gauge Length

Techniks 22945-8-RR CAT50 End Mill 1.0000 25.40mm 8.0000 Gauge Length

Part Number: TEC22945-8-RR ISO: 22945-8-RR

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419921
Vendor: Sussex Tool and Supply
$366.00
Techniks Rigid Reach Holders Have An Extra Thick Neck For Improved Rigidity And Cutting. The I.D. Hole Is H5 Standard. Rigid Reach Holders Are Balanced To 10,000 Rpm And The Taper Is Ground To At3. Lab Certified And Comes With A Performance Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 12.0000 304.80MM
Coolant Thru Thru Coolant
Tool Dia 3.8750 98.42MM - 3-7/8
Type Of Tool End Mill Holder
Insert/Tool TOOL
Part Side WELDON1.0000
Output Type Weldon
Output 1.0000 25.40MM
CNC Type Tool End Mill
CNC Conection CAT50
CNC Out Put WELDON1.0000
Gauge Length 8.0000
Max RPM 15000
Nose Dia/Nut Dia 2.000
Balanced To 000 RPM at G6.3, 15
