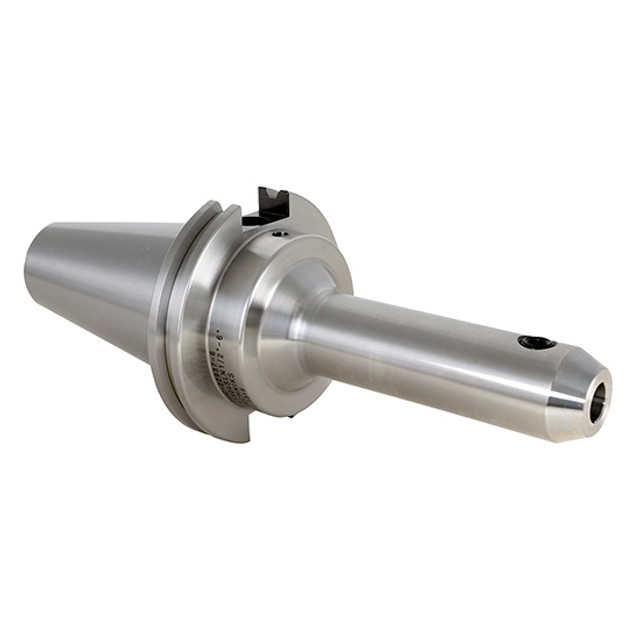

Picture of Techniks 22943-6 CAT50 End Mill 0.8750 22.23mm - 7/8 6.0000 Gauge Length

Techniks 22943-6 CAT50 End Mill 0.8750 22.23mm - 7/8 6.0000 Gauge Length

Part Number: TEC22943-6 ISO: 22943-6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419910
Vendor: Sussex Tool and Supply
$381.00
Techniks Techniks End Mill Holders Are Machined To An H5 I.D. Hole Tolerance. Extended Length End Mills Are Balanced To 10,000 Rpm To Save Spindle Bearing Life. Taper Is Ground To At3 Standard. Lab Certified With An Individual Performance Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 10.0000 254.00MM
Coolant Thru Thru Coolant
Tool Dia 3.8750 98.42MM - 3-7/8
Type Of Tool End Mill Holder
Insert/Tool TOOL
Part Side WELDON0.8750
Output Type Weldon
Output 0.8750 22.23MM - 7/8
CNC Type Tool End Mill
CNC Conection CAT50
CNC Out Put WELDON0.8750
Gauge Length 6.0000
Max RPM 15000
Nose Dia/Nut Dia 1.880
Balanced To 000 RPM at G6.3, 15
