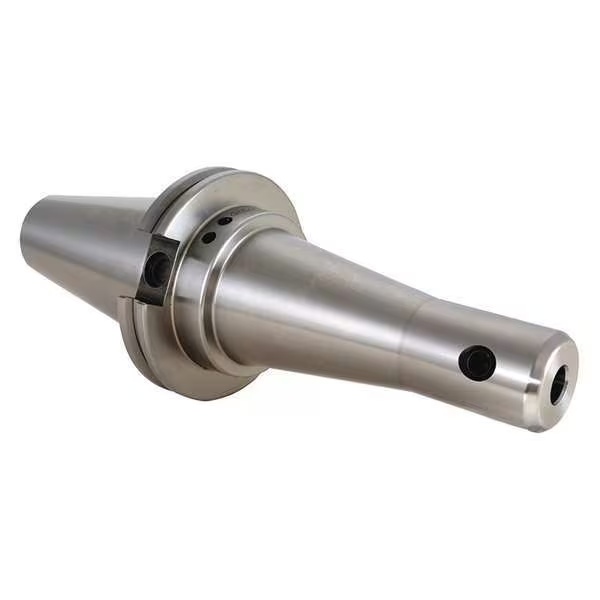

Picture of Techniks 22941-10T CAT50 End Mill 0.7500 19.05 - 3/4 10.0000 Gauge Length

Techniks 22941-10T CAT50 End Mill 0.7500 19.05 - 3/4 10.0000 Gauge Length

Part Number: TEC22941-10T ISO: 22941-10T
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$356.62
SKU: 1419897

Description

Techniks Techniks End Mill Holders Are Machined To H5 Standard I.D. Hole Tolerance. Balanced To 15,000 Rpm At G6.3 Tolerance To Save Spindle Bearing Life. Taper Is Ground To At3 Standard. Lab Certified With An Individualized Performance Report. Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool End Mill Holder
Output Type Weldon
CNC Type Tool End Mill
Dimensions & Sizing
Overall Length 14.0000 355.60MM
Tool Dia 3.8750 98.42MM - 3-7/8
Gauge Length 10.0000
Nose Dia/Nut Dia 1.750
Performance & Capacity
Output 0.7500 19.05 - 3/4
Max RPM 15000
Balanced To 000 RPM at G6.3, 15
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection CAT50
