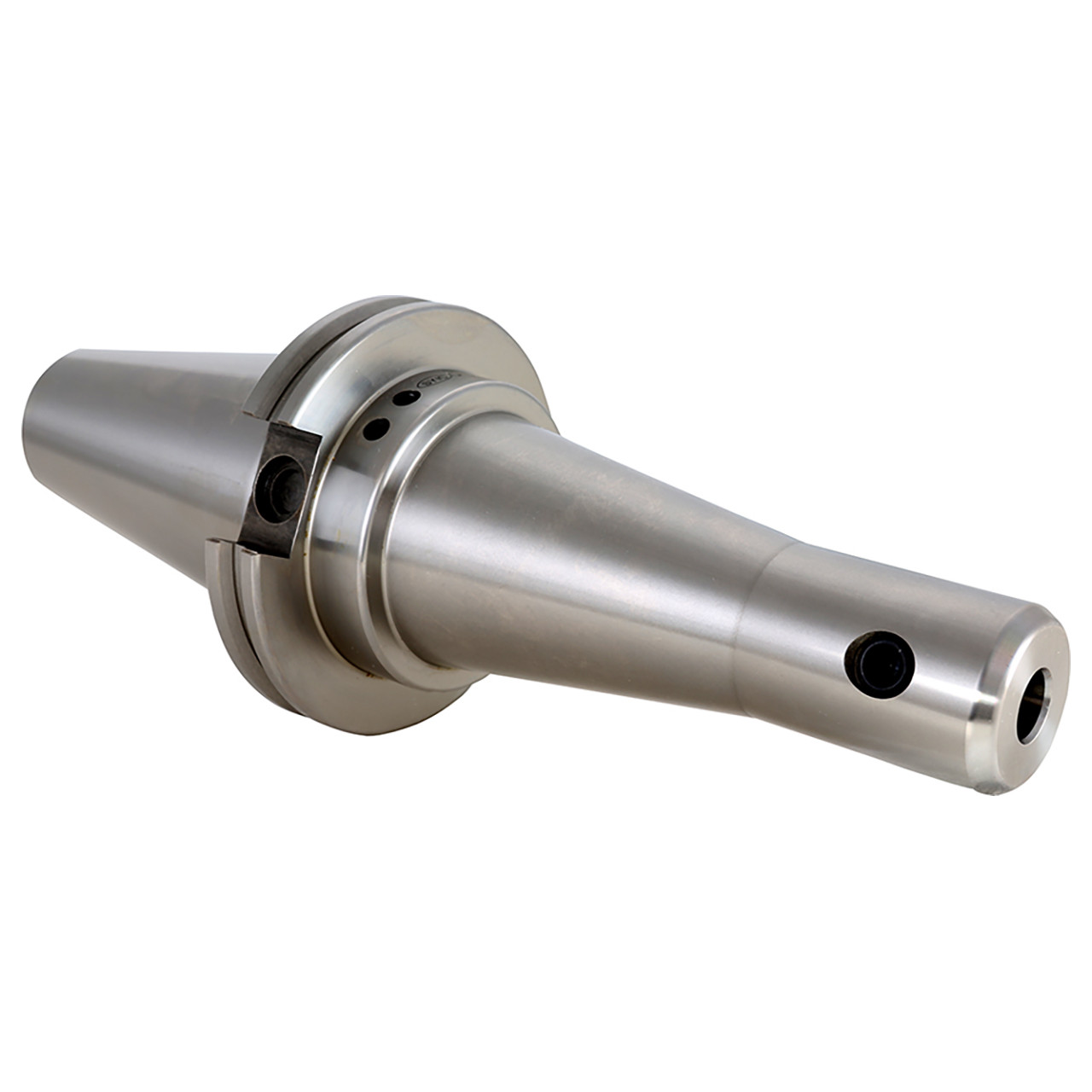

Picture of Techniks 22939-10T CAT50 End Mill 0.6250 15.88mm - 5/8 10.0000 Gauge Length

Techniks 22939-10T CAT50 End Mill 0.6250 15.88mm - 5/8 10.0000 Gauge Length

Part Number: TEC22939-10T ISO: 22939-10T

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TECHNIKS
SKU: 1419877
Vendor: Sussex Tool and Supply
$483.00
Techniks Techniks End Mill Holders Are Machined To H5 Standard I.D. Hole Tolerance. Balanced To 15,000 Rpm At G6.3 Tolerance To Save Spindle Bearing Life. Taper Is Ground To At3 Standard. Lab Certified With An Individualized Performance Report. Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 14.0000 355.60MM
Coolant Thru Thru Coolant
Tool Dia 3.8750 98.42MM - 3-7/8
Type Of Tool End Mill Holder
Insert/Tool TOOL
Part Side WELDON0.6250
Output Type Weldon
Output 0.6250 15.88MM - 5/8
CNC Type Tool End Mill
CNC Conection CAT50
CNC Out Put WELDON0.6250
Gauge Length 10.0000
Max RPM 15000
Nose Dia/Nut Dia 1.500
Balanced To 000 RPM at G6.3, 15
